Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower differential carrier assembly bushing by performing the following steps:
    1. Install the J 21474-18  (1), the thrust bearing (2), the J 36616-2  (3), the J 36616-1  (4), and the forcing screw (5) as shown.
    2. While holding the forcing screw, slowly tighten the J 21474-18  until the bushing has stopped against the step on the bushing and is centered within the differential carrier assembly bushing bore.

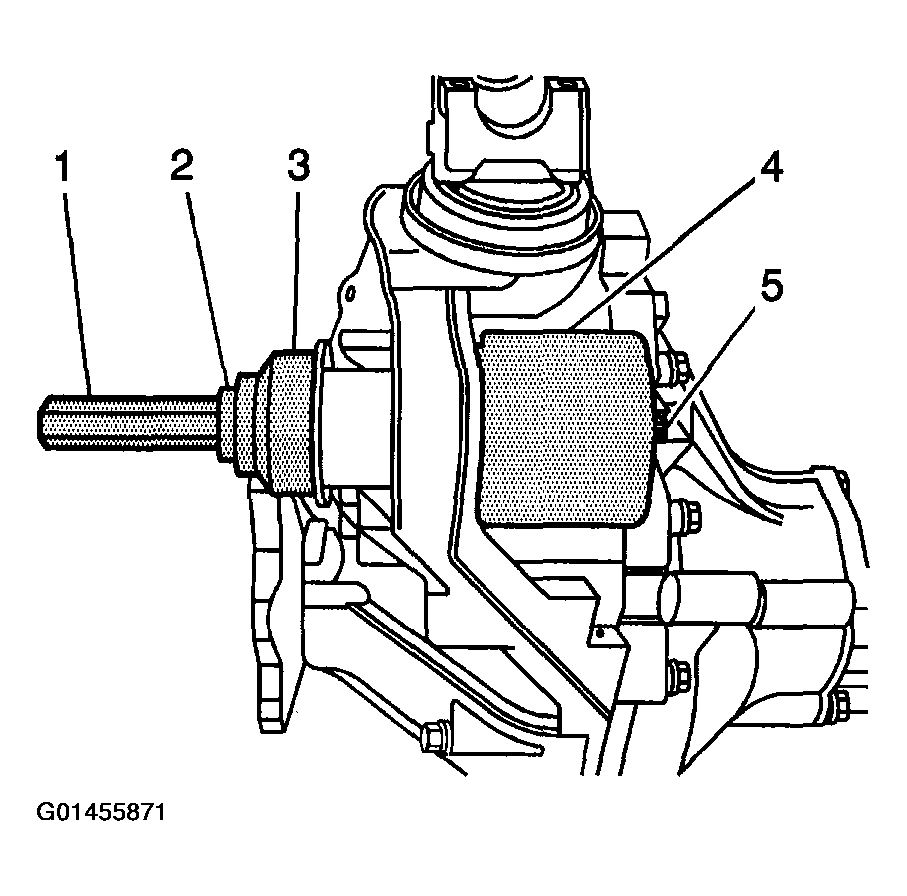

    Fig 1: Installing Lower Differential Carrier Assembly Bushing
    G01455871Courtesy of GENERAL MOTORS CORP.
  2. Install the upper differential carrier assembly bushing by performing the following steps:
    1. Install the J 21474-18  (1), the thrust bearing (2), the J 36616-2  (3), the J 36616-1  (4), and the forcing screw (5) as shown.
    2. While holding the forcing screw, slowly tighten the J 21474-18  until the bushing has stopped against the step on the bushing and is centered within the differential carrier assembly bushing bore.
  3. Install the differential carrier assembly. Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT .

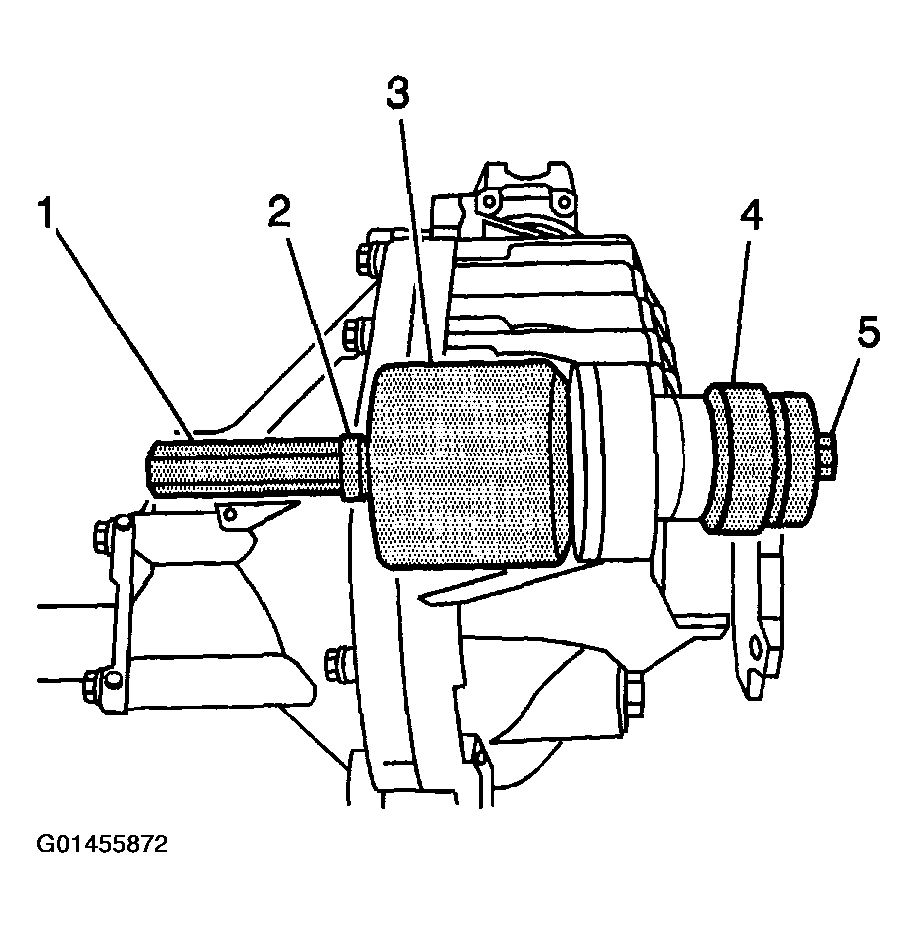

    Fig 2: Installing Upper Differential Carrier Assembly Bushing
    G01455872Courtesy of GENERAL MOTORS CORP.
