Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the bearing with axle lubricant. Use the proper fluid. Refer to Figure.
  2. Install the clutch shaft pilot bearing using the J 33842  .
  3. Install the clutch shaft to the differential carrier assembly.
  4. Install the inner axle shaft and housing assembly. Refer to INNER SHAFT AND/OR HOUSING REPLACEMENT - FRONT DRIVE AXLE (8.25 S4WD AND 9.25 AXLES)   or  INNER SHAFT AND/OR HOUSING REPLACEMENT - FRONT DRIVE AXLE (8.25 F4WD AXLE)   .

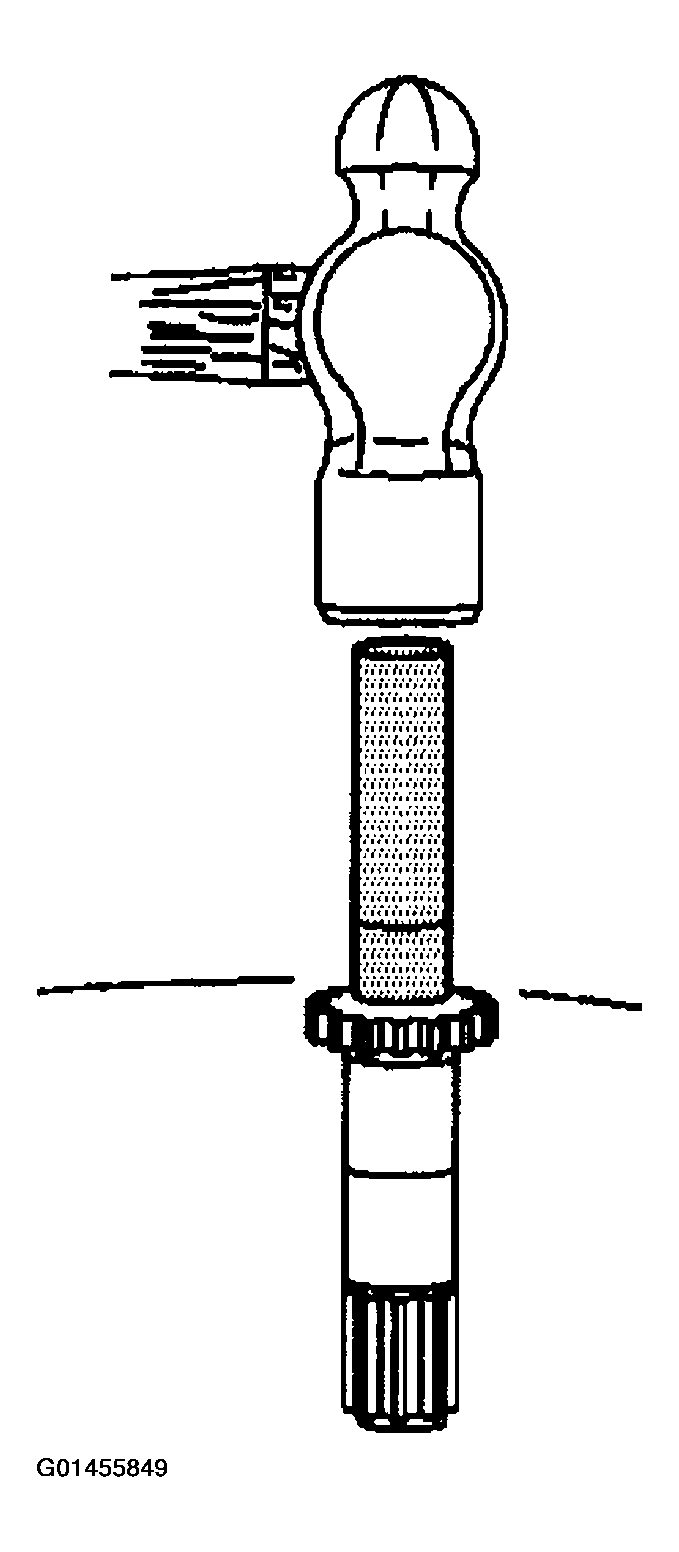

    Fig 1: Installing Clutch Shaft Pilot Bearing
    G01455849Courtesy of GENERAL MOTORS CORP.
