Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the differential carrier assembly. Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT .
  3. Remove the nuts and the washers from the bracket.
  4. Remove the bolt from the bracket.
  5. Remove the bracket from the vehicle.

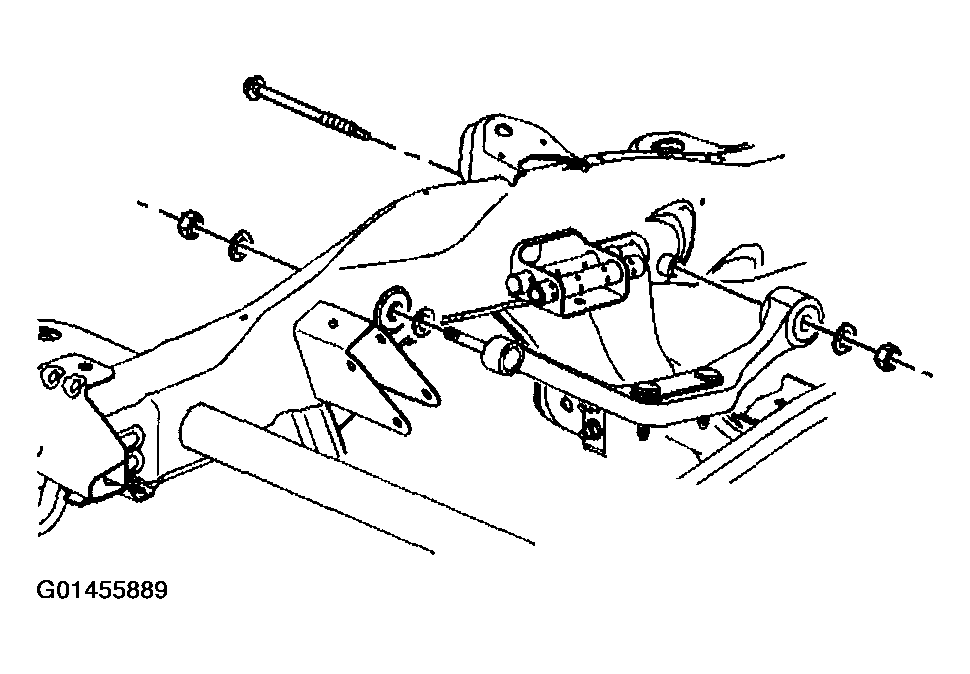

    Fig 1: Removing Nuts And Washers From Bracket
    G01455889Courtesy of GENERAL MOTORS CORP.
