Heater Outlet Hose Replacement (LAT Pump to Heater Core)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

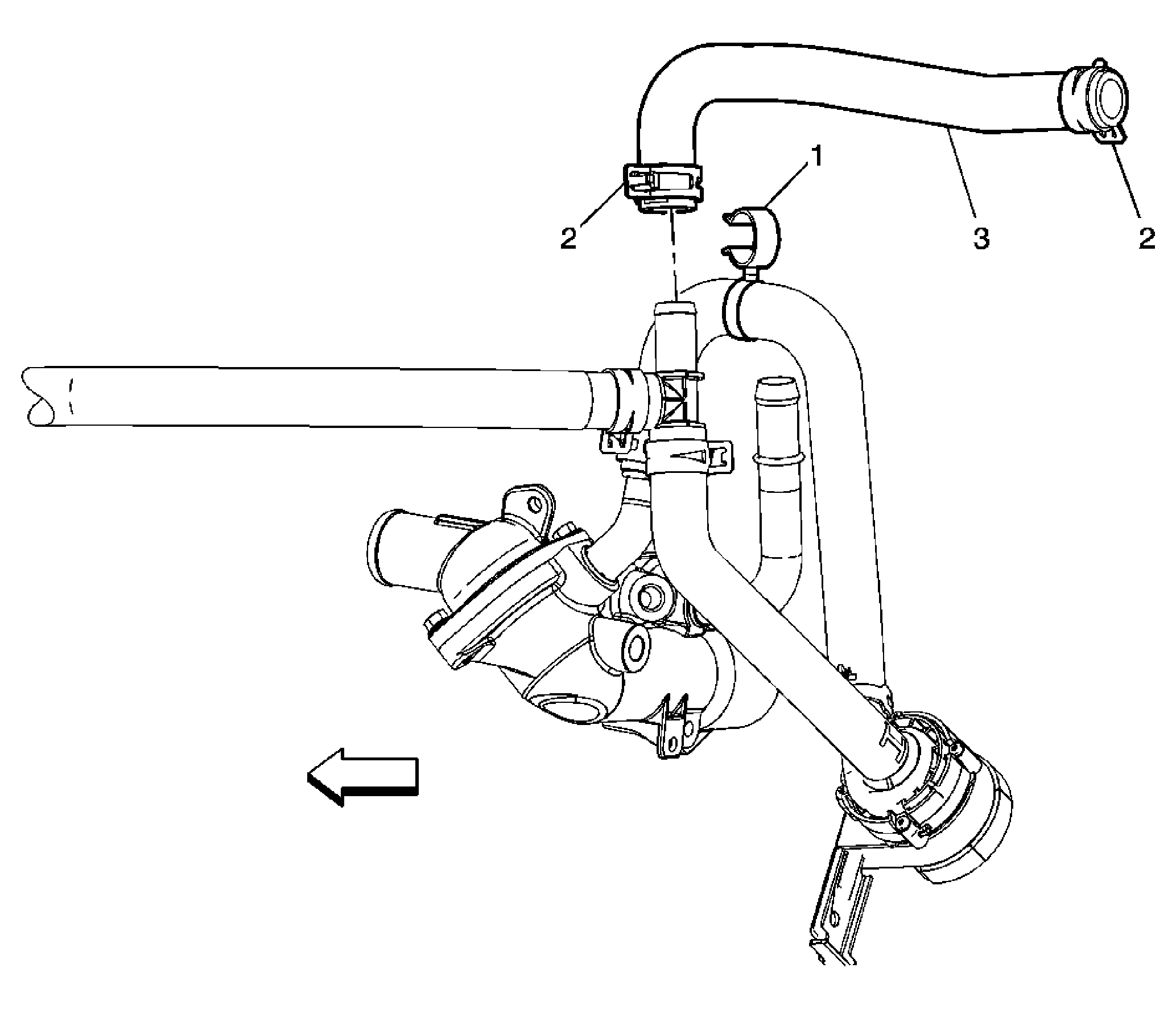

Fig 1: View Of Heater Outlet Hose (LAT Pump to Heater Core)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Partially drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill)
1	Radiator Outlet Hose positioning clamp
2	Radiator Outlet Hose clamp (Qty: 2)
3	Radiator Outlet Hose
