Evaporator Outlet Hose Replacement (L61)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

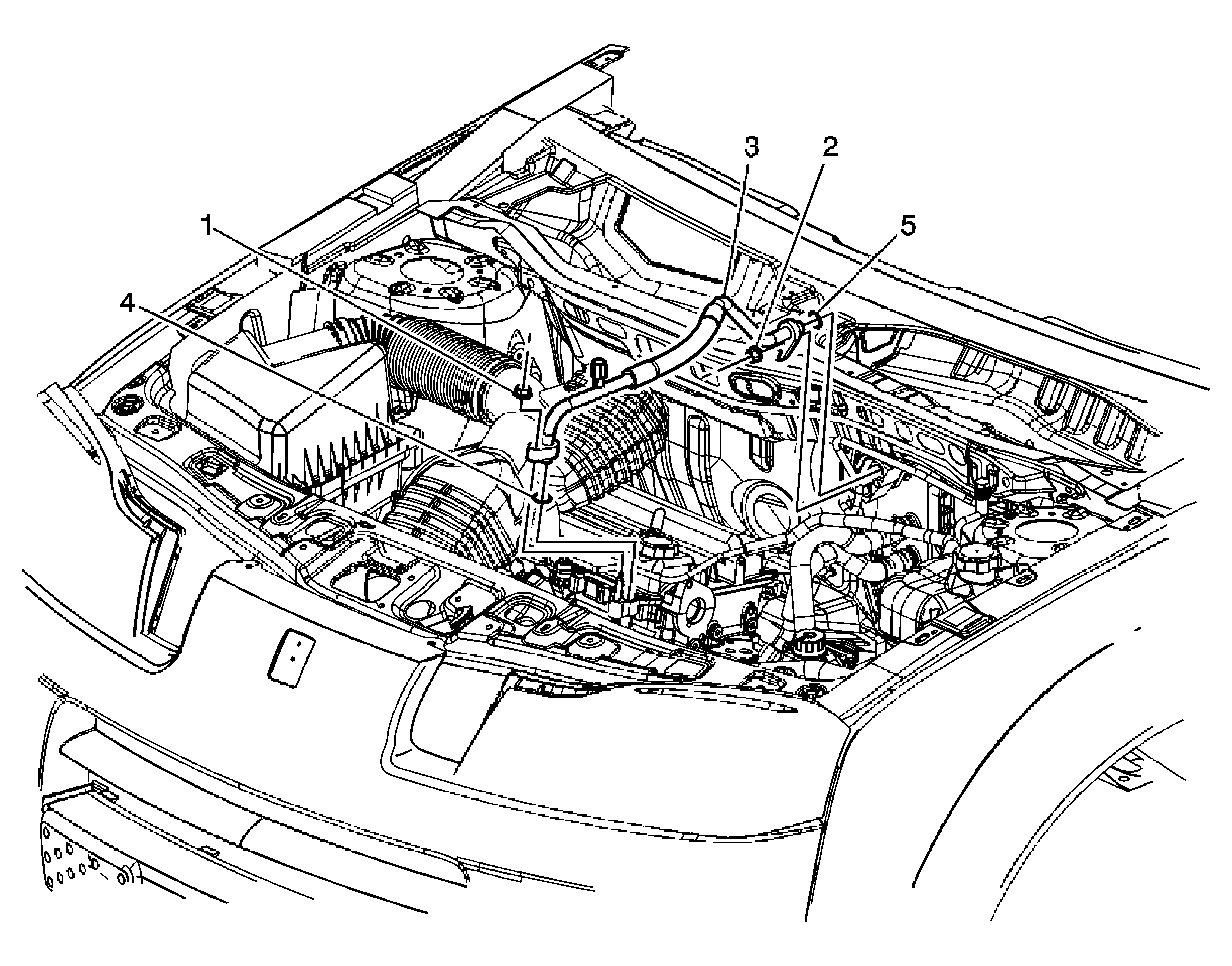

Fig 1: View Of Evaporator Outlet Hose (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
1	A/C Compressor Hose Assembly Nut NOTE: Refer to Fastener Notice . Tighten: 16 N.m (12 lb ft)
2	Thermal Expansion Valve (TXV) Nut Tighten: 20 N.m (15 lb ft)
3	A/C Compressor Hose Assembly
4	A/C Compressor Hose Assembly Washer Seal Tip: Remove and discard the seal. Refer to Sealing Washer Replacement .
5	A/C Compressor Hose Assembly Washer Seal Tip: Remove and discard the seal. Refer to Sealing Washer Replacement .
