Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    4. Fig 1: Electrical Connector & Compressor
    GM932631Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the compressor.

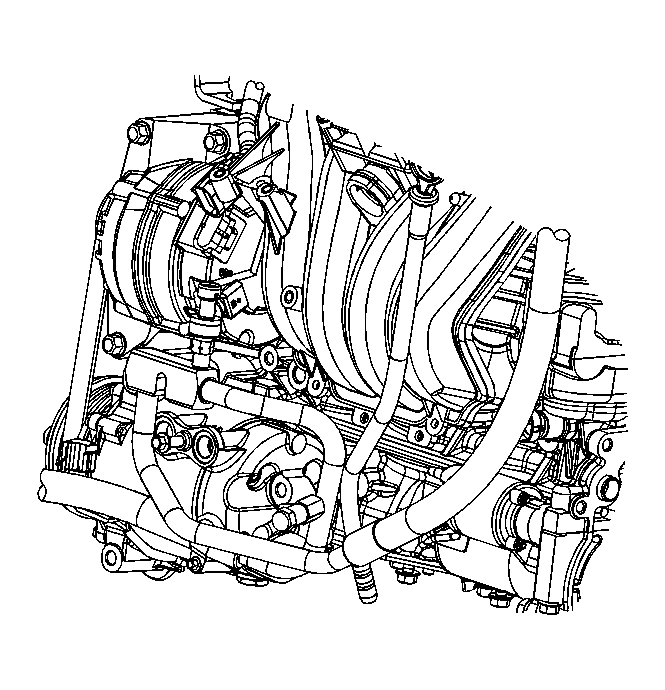

    5. Fig 2: Locating Compressor & Related Hoses
    GM1644774Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor hose bolt from the compressor.
  6. Remove the compressor hose from the compressor.
  7. Remove and discard the O-rings from the compressor. Refer to O-Ring Replacement .
  8. Install a shipping cap to the compressor hose to prevent moisture or contamination from entering the A/C system.
  9. Install a shipping cap to the compressor to prevent oil spillage during compressor removal.
    10. Fig 3: Compressor Bolts & Engine
    GM932593Courtesy of GENERAL MOTORS CORP.
  10. Remove the compressor bolts from the engine.
  11. Remove the compressor from the vehicle.
