Compressor Hose Assembly Replacement (L66)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

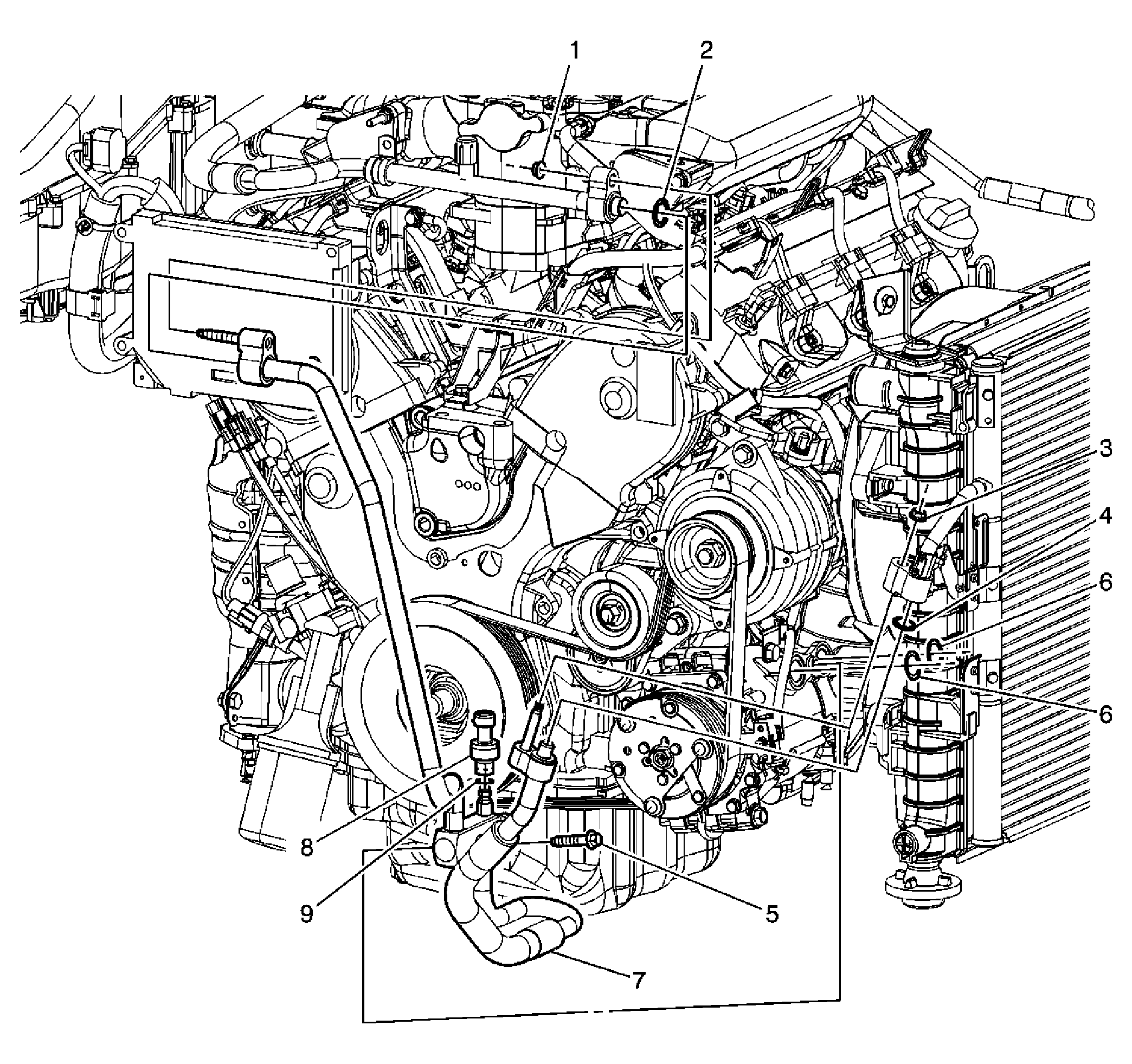

Fig 1: View Of Compressor Hose Assembly (L66)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging . Remove the air cleaner duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . Remove the right front headlamp. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement .
1	A/C Compressor Hose Nut NOTE: Refer to Fastener Notice . Tighten: 16 N.m (12 lb ft)
2	Sealing Washer Tip: Remove and discard the seal. Refer to Sealing Washer Replacement .
3	A/C Compressor Hose Nut Tighten: 16 N.m (12 lb ft)
4	Sealing Washer Tip: Remove and discard the seal. Refer to Sealing Washer Replacement . Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
5	A/C Compressor Hose Bolt Tip: Remove the A/C compressor hose assembly from the vehicle. Tighten: 27 N.m (20 lb ft)
6	Sealing O-Rings Tip: Remove and discard the seal. Refer to O-Ring Replacement .
7	A/C Compressor Hose
8	A/C Refrigerant Pressure Sensor
9	Sensor A/C Refrigerant Pressure Seal
