Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LAT)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

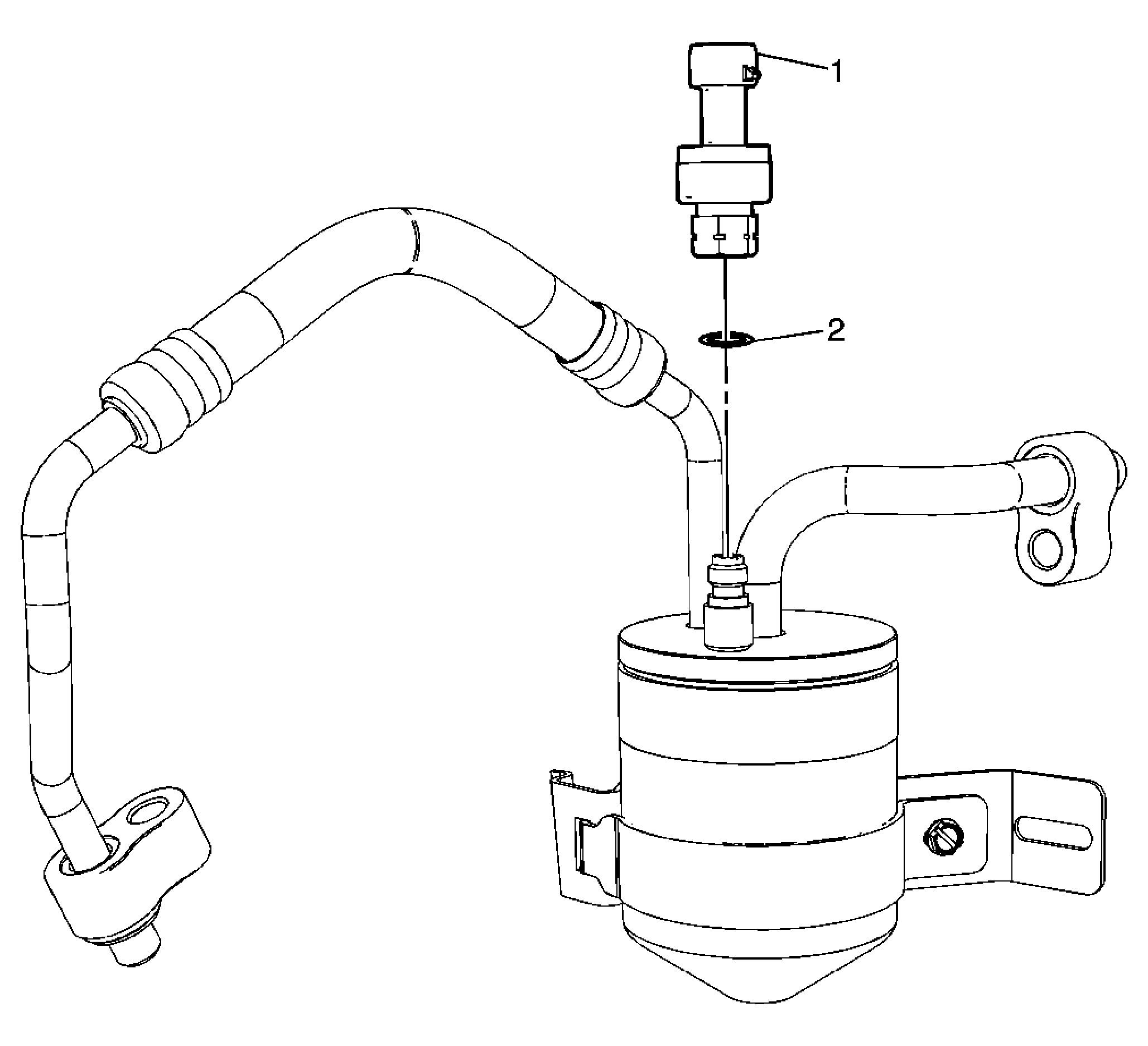

Fig 1: View Of Air Conditioning (A/C) Refrigerant Pressure Sensor(LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the electrical connector from the refrigerant pressure sensor.
1	Remove the refrigerant pressure sensor from the receiver dehydrator. Tip: Hand start the refrigerant pressure sensor to the receiver dehydrator, taking care not to pinch the O-ring and tighten. Tighten: 4 N.m (35 lb in)
2	Remove and discard 0-ring Tip: Lubricate the new refrigerant pressure sensor O-ring with mineral oil. Refer to O-Ring Replacement
