Fluid Pressure Test Hole Plugs - Transmission Case

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

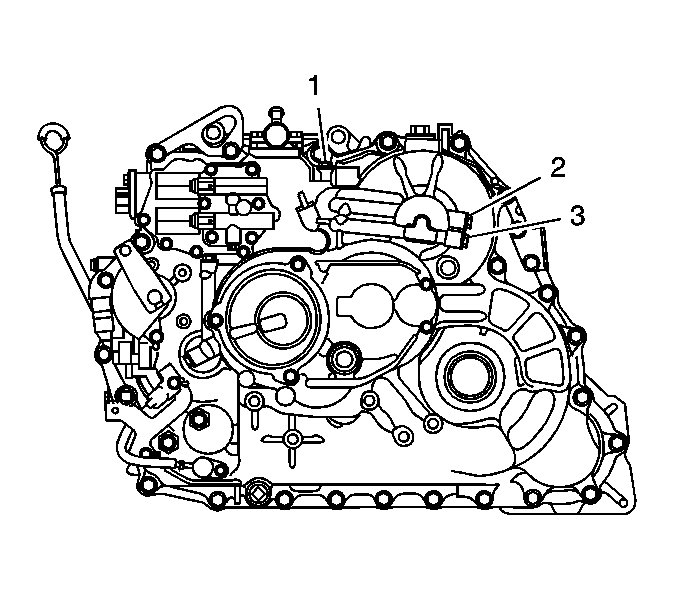

    Fig 1: Fluid Pressure Test Hole Plugs - Transmission Case
    GM1417931Courtesy of GENERAL MOTORS CORP.
  1. 4th Clutch
  2. 1st Clutch
  3. Coast Clutch
