Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

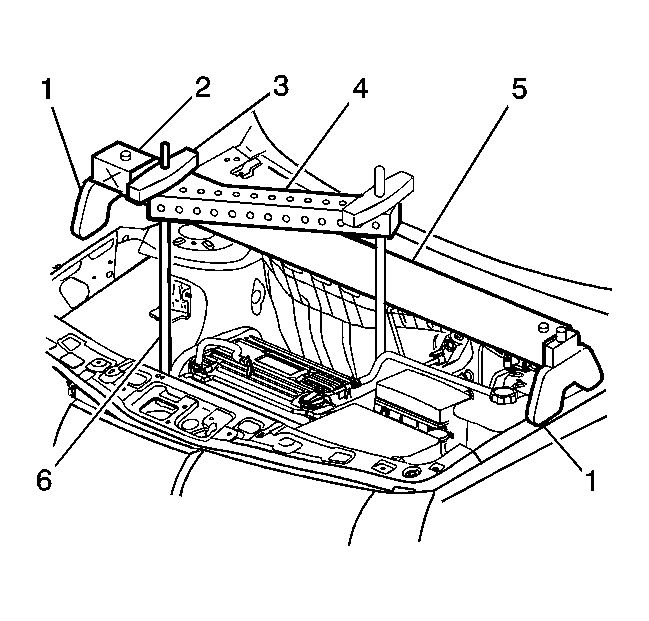

    Fig 1: View Of Engine Support Fixture
    GM1249752Courtesy of GENERAL MOTORS CORP.
  1. Install the SA9105E  (2) to the vehicle.
  2. Install the J 45122 (1) to the engine support fixture legs.
  3. Install the SA9105E  (4) to the engine support fixture long bar.
  4. Install the J 43405  (5) to engine support crossbar.
  5. Install the J 43405  (6) to the engine support fixture hooks.
