Intake Manifold Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intake Manifold Studs

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the intake manifold studs in the manifold face.
Tighten: Tighten the intake manifold studs to 5 N.m (44 lb in).

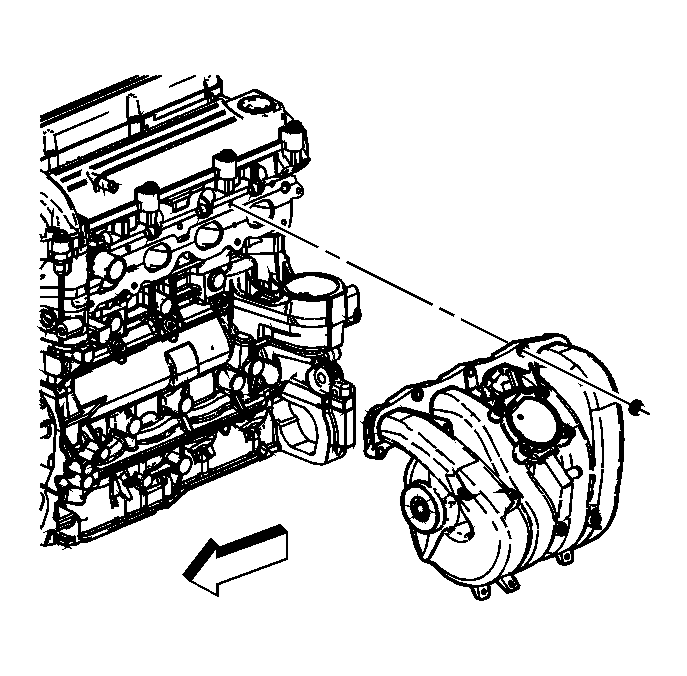

Fig 2: View Of Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Install a new intake manifold gasket on the intake manifold.
Install the intake manifold.
Install the intake manifold bolts and nuts. Follow the tightening sequence.
Tighten: Tighten the bolts and nuts to 10 N.m (89 lb in).

Fig 3: View Of Fuel Injector Tip Insulators

Courtesy of GENERAL MOTORS CORP.

Lubricate the fuel injector tip insulators with engine oil.
Install new fuel injector tip insulators.

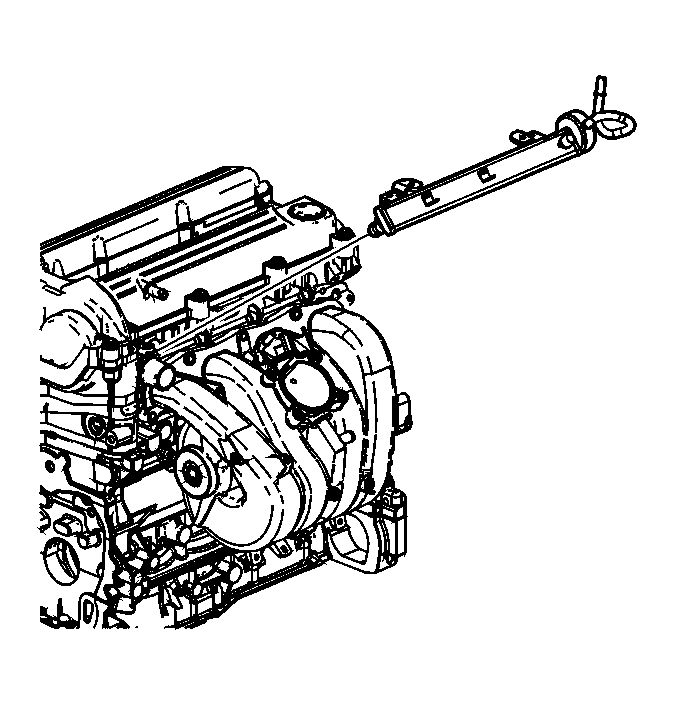

Fig 4: Identifying Fuel Rail Assembly

Courtesy of GENERAL MOTORS CORP.

Lubricate the fuel injector oil rings with engine oil.
Install the fuel rail assembly.
Install the fuel rail stud.
Tighten: Tighten the stud to 10 N.m (89 lb in).

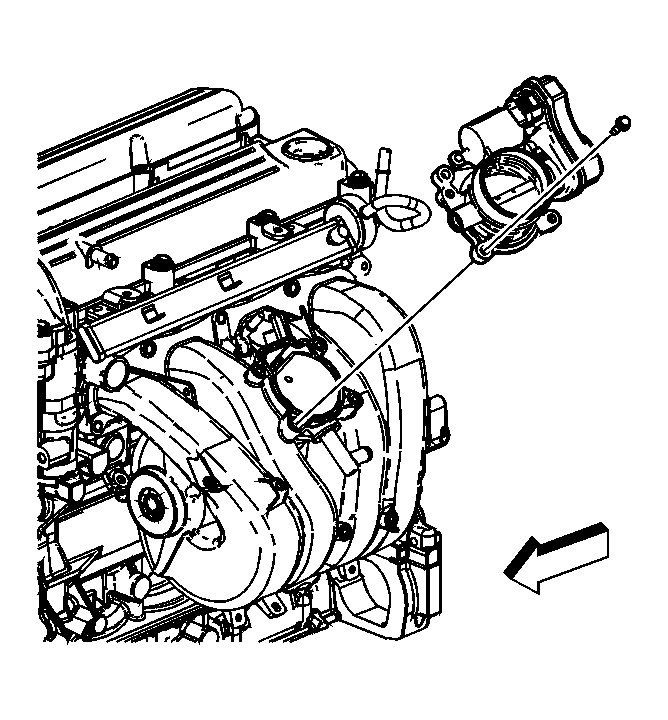

Fig 5: Identifying Throttle Body

Courtesy of GENERAL MOTORS CORP.

Install a new throttle body gasket.
Install the throttle body.
Install the throttle body bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

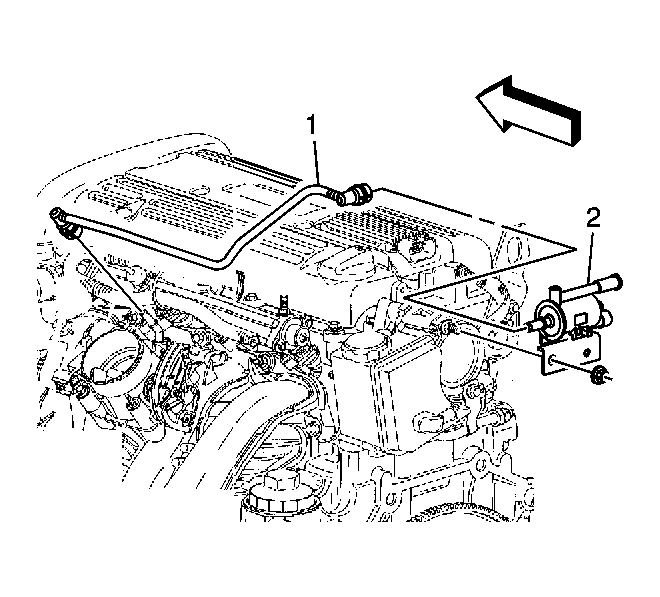

Fig 6: View Of EVAP Emission Canister Valve Tube

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the rear metal tab of the EVAP canister valve is resting on the power steering pump metal body.

Install the EVAP canister valve (2).
Tighten: Tighten the EVAP canister valve to 22 N.m (16 lb ft).
Install the EVAP canister valve tube (1).
