Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing/Installing Vent Hose On The Differential Assembly
    GM1340746Courtesy of GENERAL MOTORS CORP.
  1. Install the vent hose (1) to the differential assembly by pushing the vent hose over the barbed fitting. Ensure the vent hose is fully seated on the fitting.
  2. Secure the vent hose retaining clip (2) along the top of the rear suspension crossmember.
    3. Fig 2: View Of Vent Hose Clips & Fuel Vent Pipe

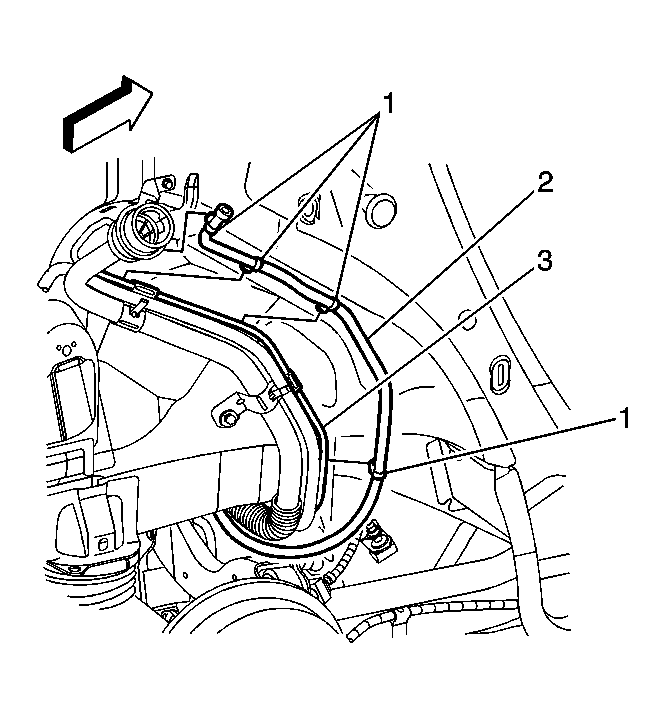

    GM1340750Courtesy of GENERAL MOTORS CORP.
  3. Secure the vent hose clips (2) to the fuel vent pipe (3).
    4. Fig 3: Wheelhouse Liner & Pushpin Retainers
    GM1257378Courtesy of GENERAL MOTORS CORP.
  4. Position the wheelhouse liner to the vehicle and install the pushpin retainers.
  5. Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
