DTC P2763 (2.4L Hybrid): Notes

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

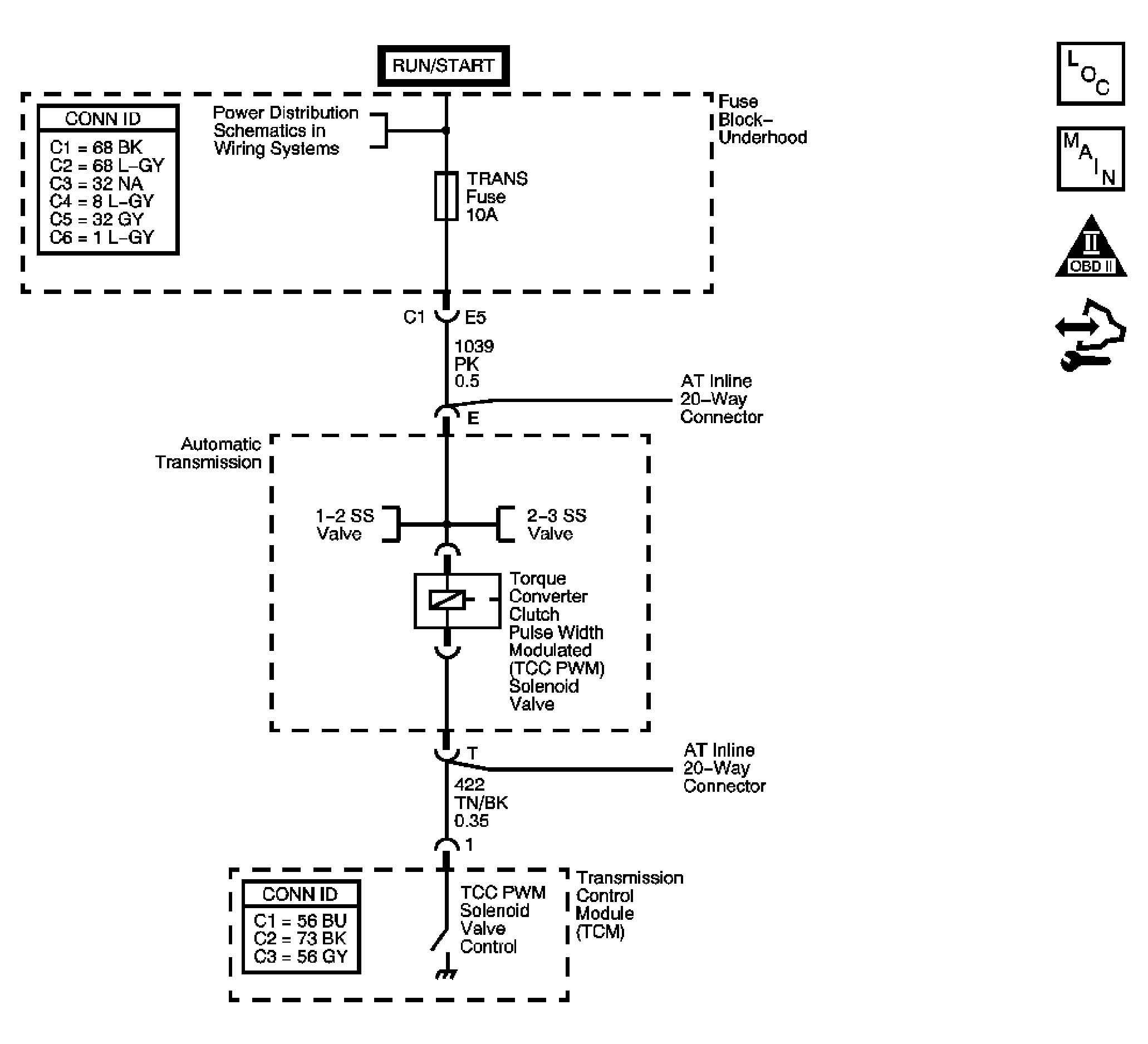

Fig 1: TCC Pressure Control Solenoid Control Circuit

Courtesy of GENERAL MOTORS CORP.
