Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

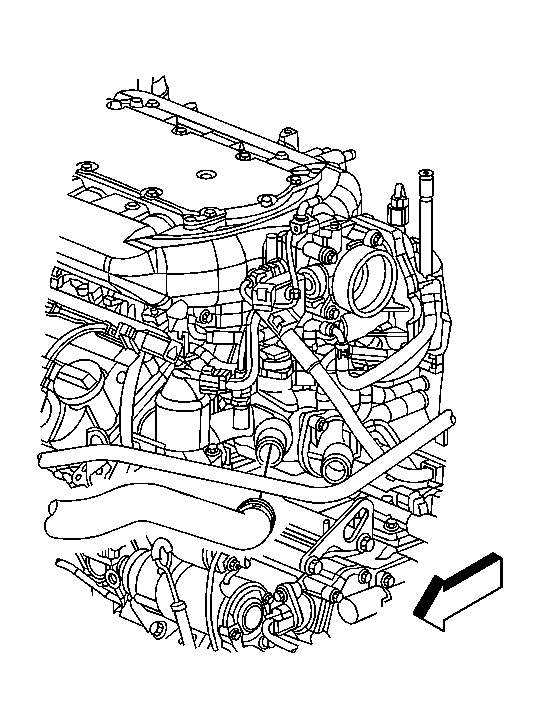

    Fig 1: View Of Radiator Inlet Hose
    GM1252503Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator inlet hose to the engine.
  2. Install the radiator inlet hose clamp to the engine.
    3. Fig 2: View Of Radiator Hose
    GM1252561Courtesy of GENERAL MOTORS CORP.
  3. Install the surge tank inlet hose to the surge tank.
  4. Install the radiator hose retaining straps to the radiator support.
  5. Install the radiator inlet hose to the radiator.
  6. Install the radiator inlet hose clamp to the radiator.
  7. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill)  or Draining and Filling Cooling System (GE 47716 Fill) .
