Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

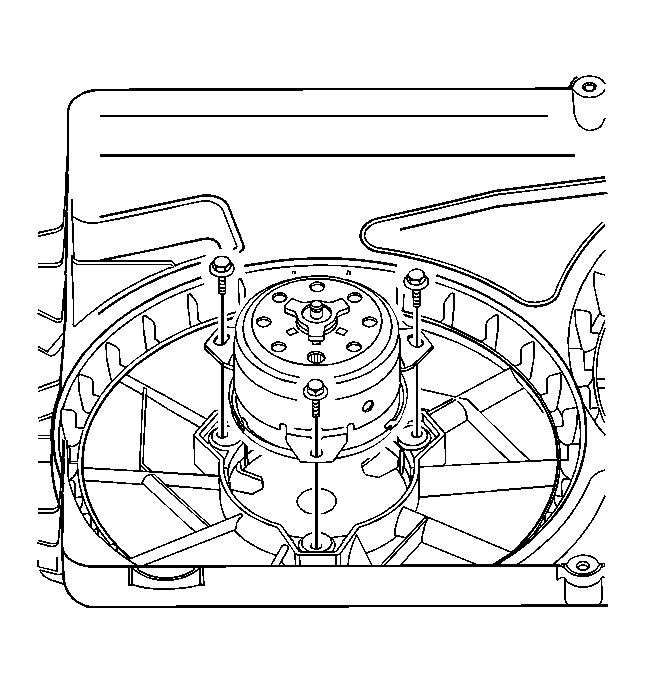

    Fig 1: View Of Fan Motor Screws From The Fan Shroud
    GM1284993Courtesy of GENERAL MOTORS CORP.
  1. Install the fan motor to the fan shroud.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the fan motor screws to the fan shroud.

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

    3. Fig 2: View Of Fan From The Motor
    GM1284991Courtesy of GENERAL MOTORS CORP.
  3. Install the fan (1) to the motor (2).
    4. Fig 3: View Of Cooling Fan Motor
    GM1284988Courtesy of GENERAL MOTORS CORP.
  4. Align the scribe marks (3) previously made on the fan (2) hub and the motor shaft (1).
    5. Fig 4: View Of Fan Retaining Clip From The Motor Shaft
    GM1284989Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the scribe marks remain aligned during fan retaining clip (1) installation.
  5. Install a new fan retaining clip (1) to the motor shaft (2). Ensure the retaining clip (1) is fully seated.
  6. Install the cooling fan and shroud to the vehicle. Refer to Cooling Fan and Shroud Replacement (L61)  or Cooling Fan and Shroud Replacement (L66)  or Cooling Fan and Shroud Replacement (LAT) .
