Generator Battery Vent Fan Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

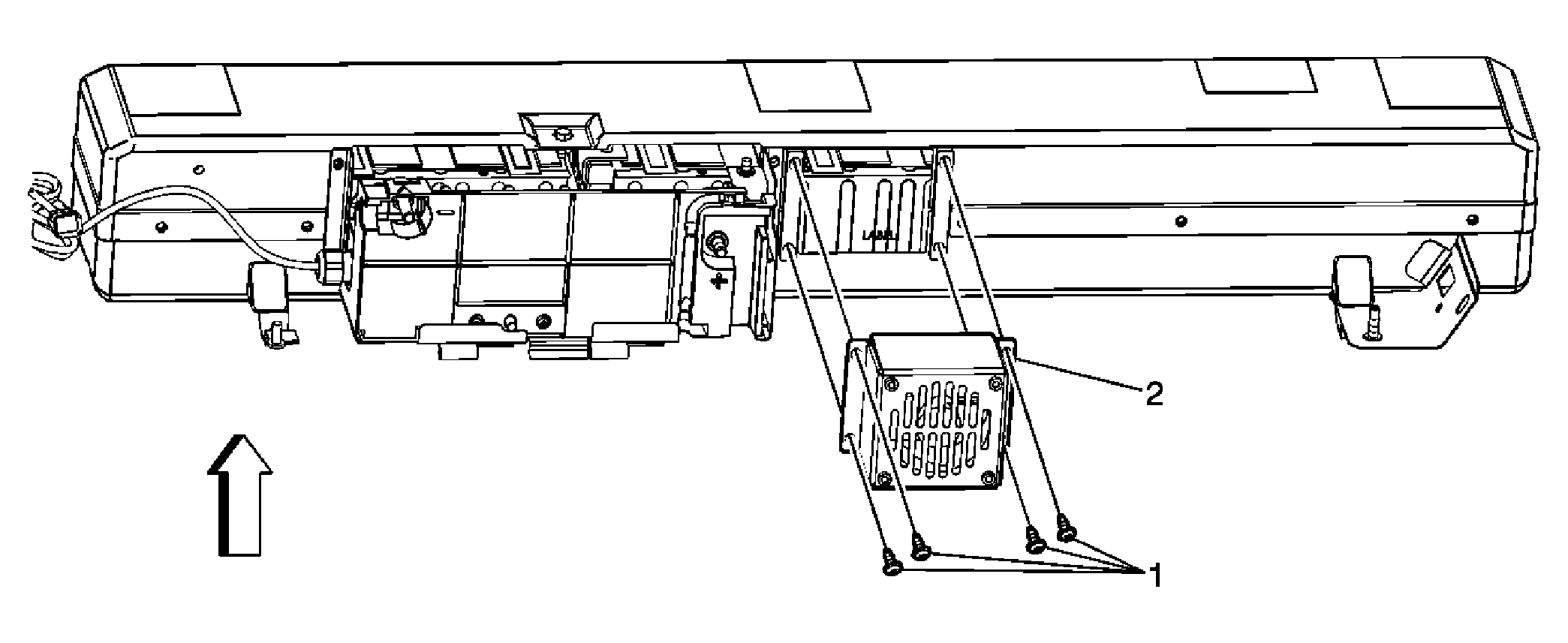

Fig 1: View Of Generator Battery Vent Fan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the hybrid battery service Disconnect/Connect cover. Refer to Hybrid Battery Service Disconnect/Connect .
1	Vent Fan Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Generator Battery Vent Fan Tip: Disconnect fan electrical connector.
