Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

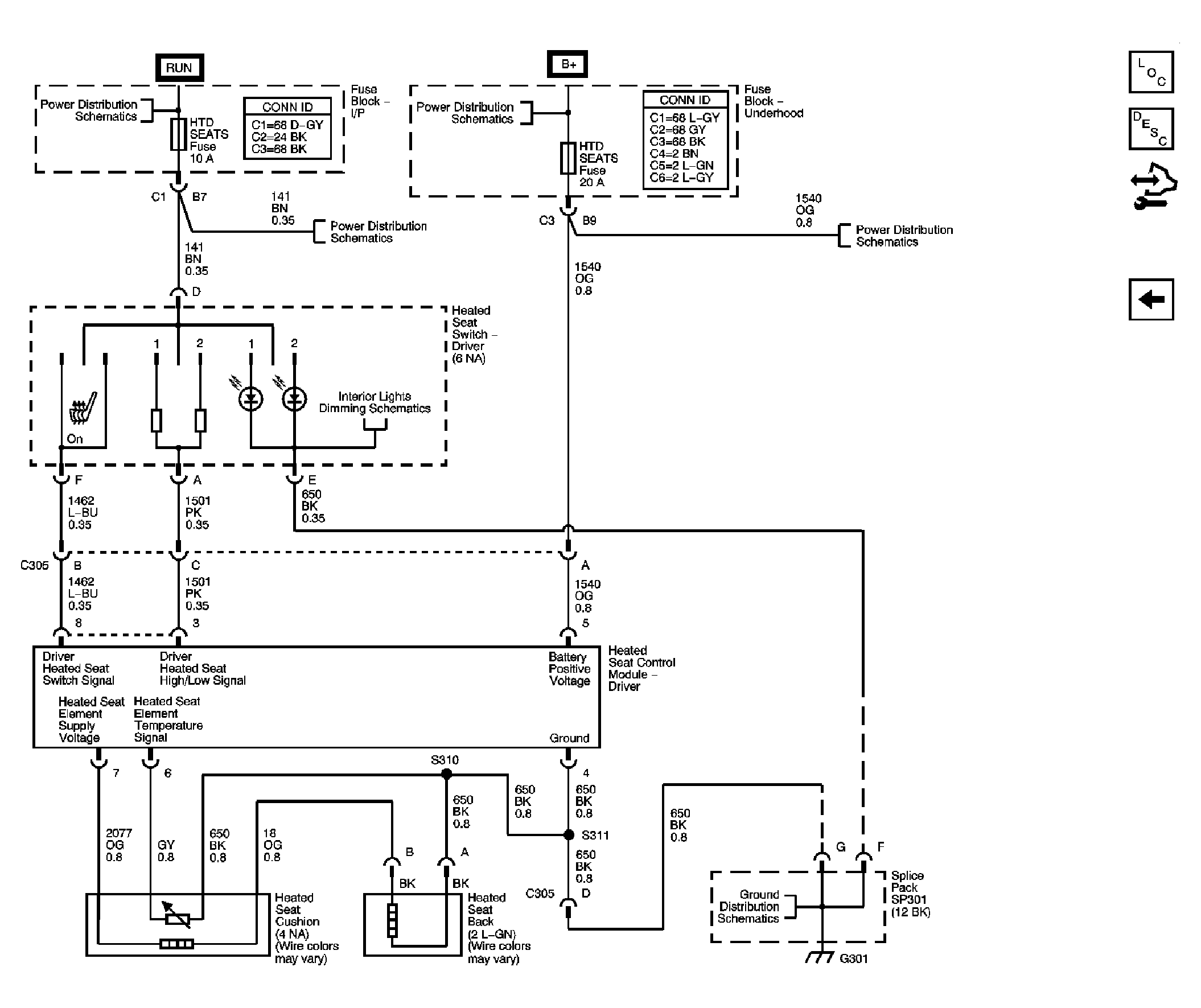

Fig 1: Heated/Cooled Seat Schematic (Driver)
GM1798640Courtesy of GENERAL MOTORS CORP.

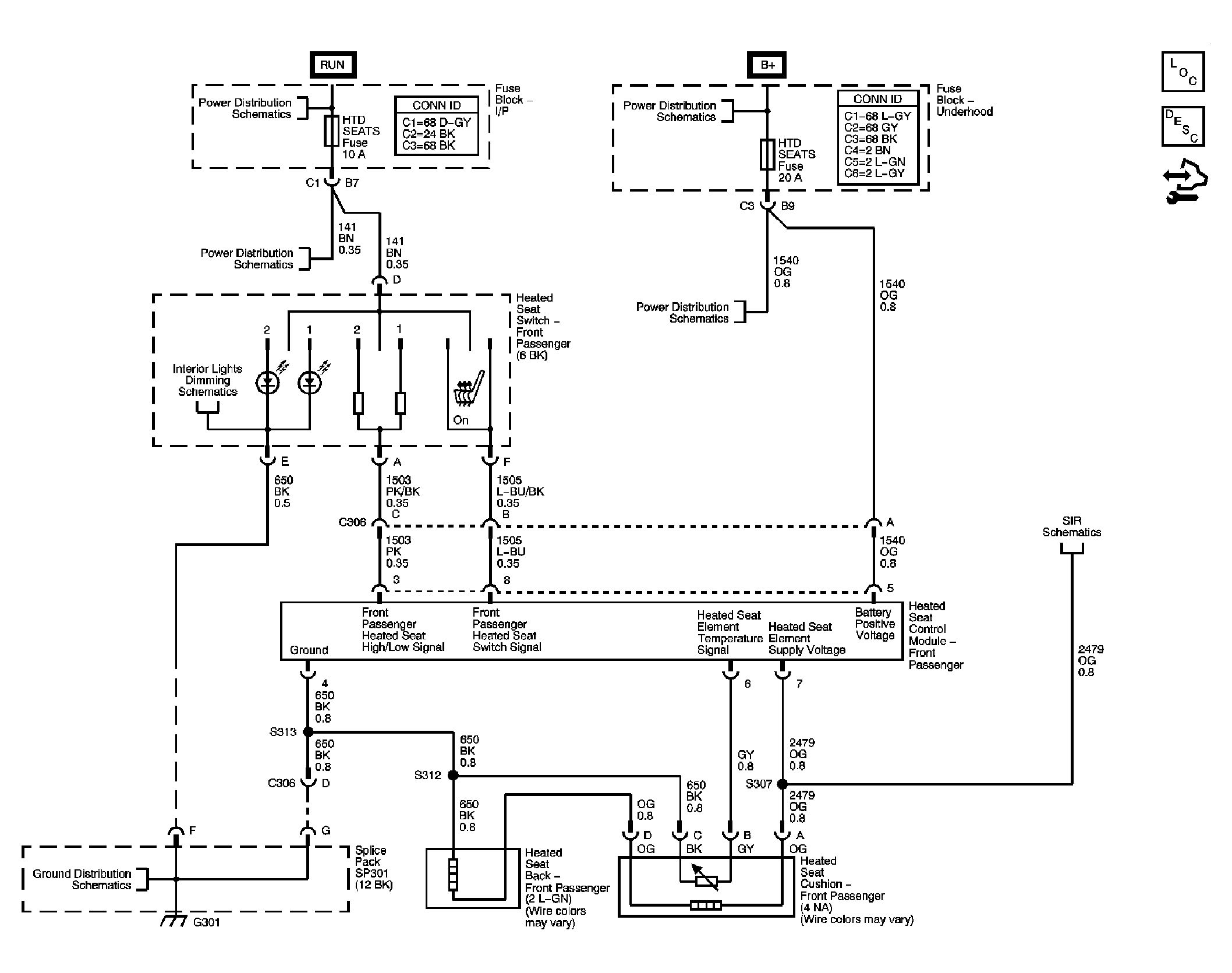

Fig 2: Heated/Cooled Seat Schematic (Passenger)
GM1798641Courtesy of GENERAL MOTORS CORP.
