Heated/Cooled Seat Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

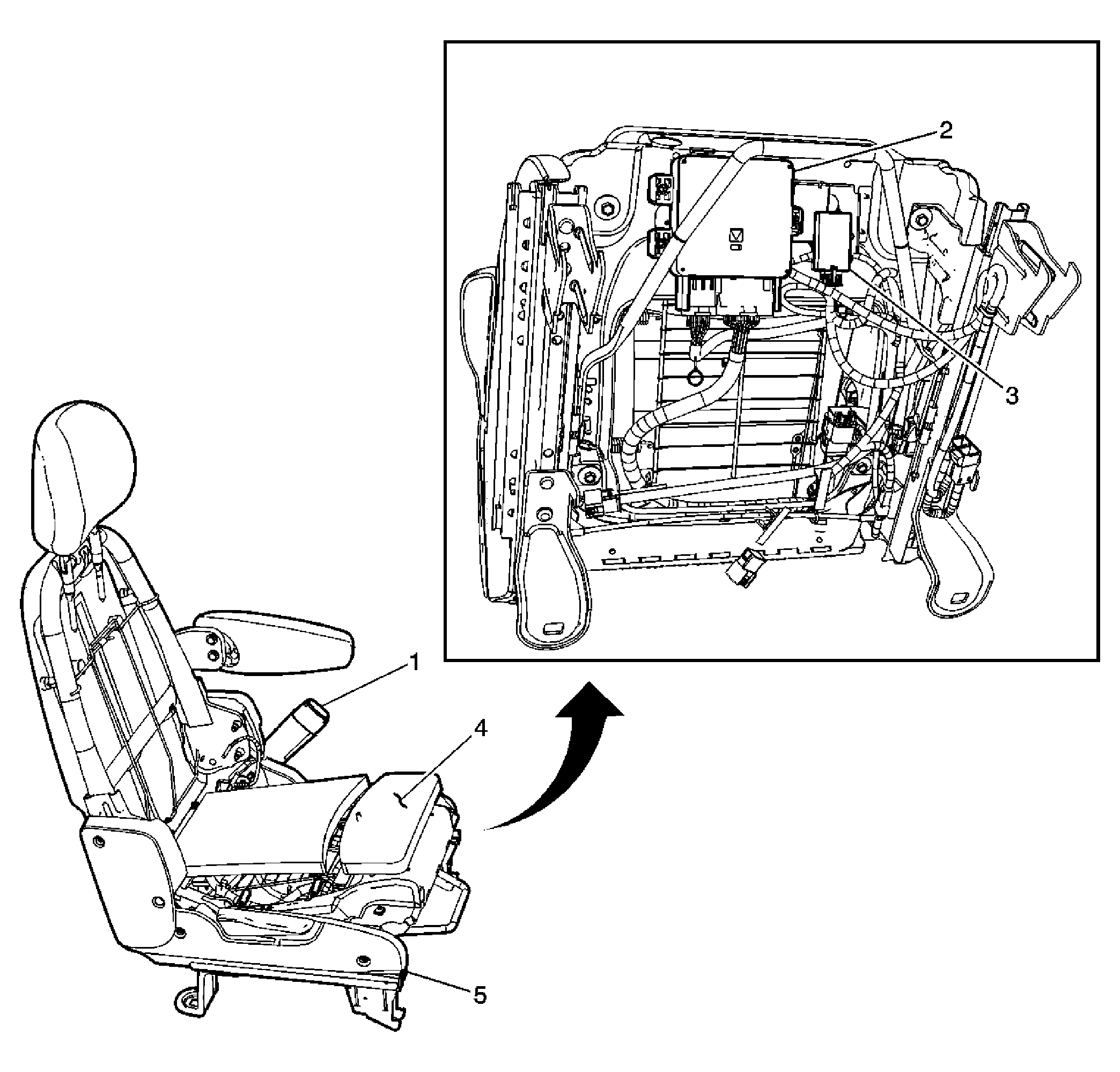

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Belt Switch |
| 2 |
Inflatable Restraint Passenger Presence System (PPS) Module |
| 3 |
Heated Seat Module (KA1) |
| 4 |
Inflatable Restraint Passenger Presence System (PPS) Sensor |
| 5 |
Passenger Seat |

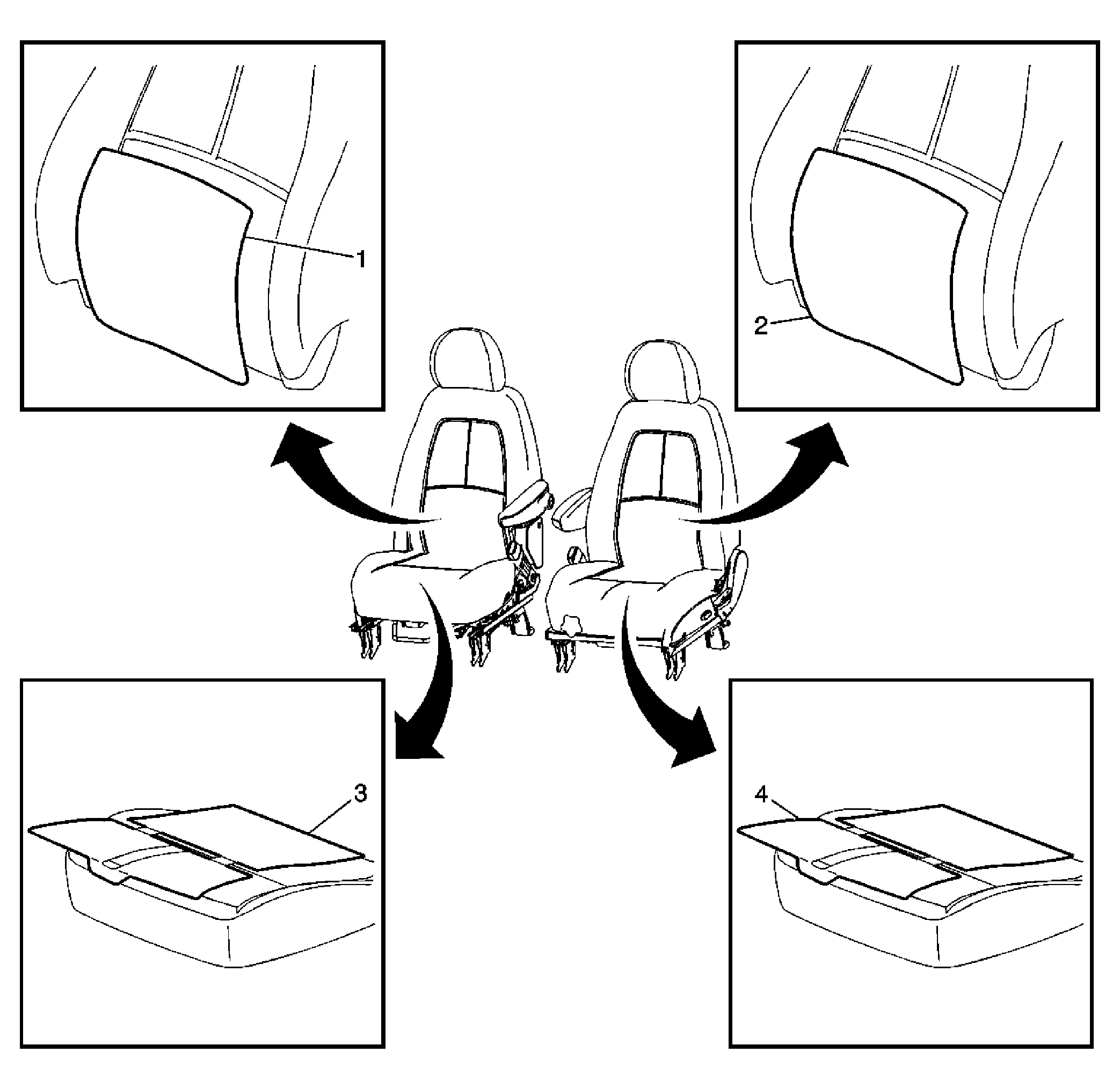

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Heated Seat Back - Front Passenger (KA1) |
| 2 |
Heated Seat Back - Driver (KA1) |
| 3 |
Heated Seat Cushion - Driver (KA1) |
| 4 |
Heated Seat Cushion - Front Passenger (KA1) |
