Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Air Cleaner Outlet Duct At Air Cleaner Assembly
    GM1815161Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner outlet duct to the air cleaner and the throttle body.
  2. Install the PCV hose to the air cleaner outlet duct.
  3. Position the PCV hose clamp (3) at the air cleaner outlet duct.
  4. Tighten the air cleaner outlet duct clamp (2) at the throttle body.
    5. NOTE: Refer to Fastener Notice .
  5. Tighten the air cleaner outlet duct clamp (1) at the air cleaner assembly.

    Tighten:  Tighten the clamps to 4.5 N.m (40 lb in).

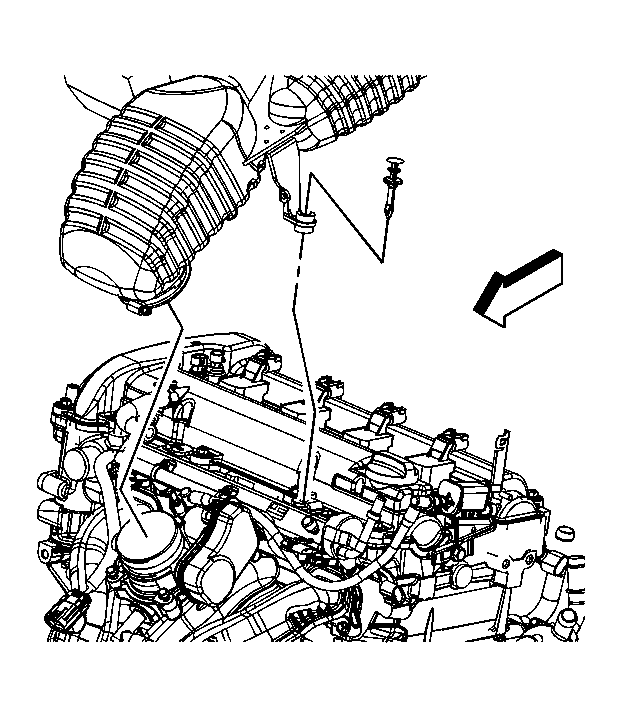

    6. Fig 2: Air Cleaner Push Pin Retainer
    GM1815162Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner push pin retainer securing the air cleaner outlet duct to the fuel rail.

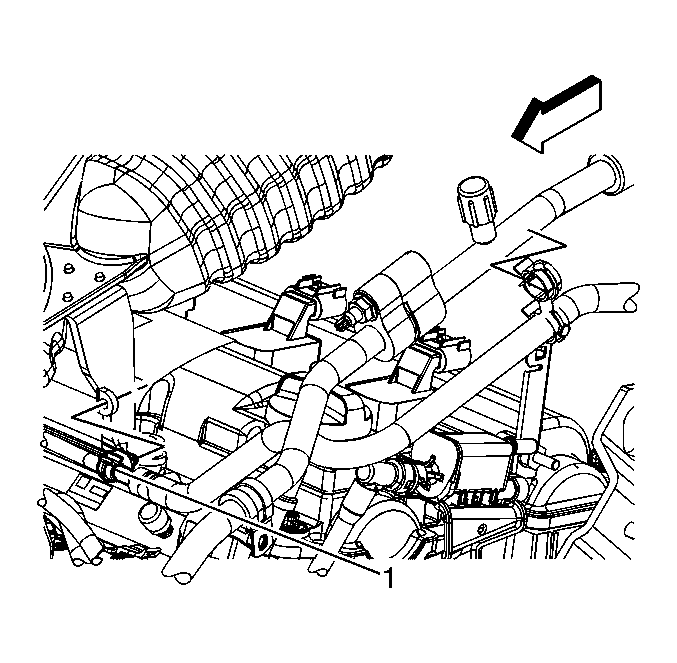

    7. Fig 3: Coolant Recovery Reservoir Inlet Hose
    GM1815171Courtesy of GENERAL MOTORS CORP.
  7. Install the coolant recovery reservoir inlet hose to the retainer (1) on the air cleaner outlet duct.
