Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Air Filter
    GM1820847Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter and close the air cleaner upper half.
  2. Engage the 2 retaining clips (1) securing the air cleaner upper half to the lower half.
    3. Fig 2: Locating Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor Connector
    GM1814555Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.

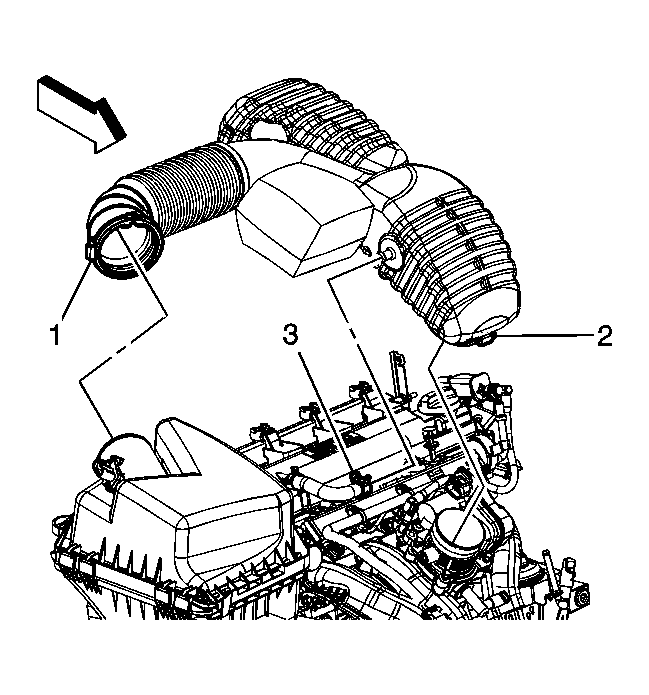

    4. Fig 3: Air Cleaner Outlet Duct At Air Cleaner Assembly
    GM1815161Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner outlet duct to the air cleaner assembly.
    5. NOTE: Refer to Fastener Notice .
  5. Tighten the air cleaner outlet duct clamp (1) at the air cleaner assembly.

    Tighten:  Tighten the clamp to 4.5 N.m (40 lb in).
