Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Air Cleaner Assembly
    GM1815159Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly and secure the air cleaner by inserting the mounting pins into the holes in the front panel.
  2. Install the air cleaner bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

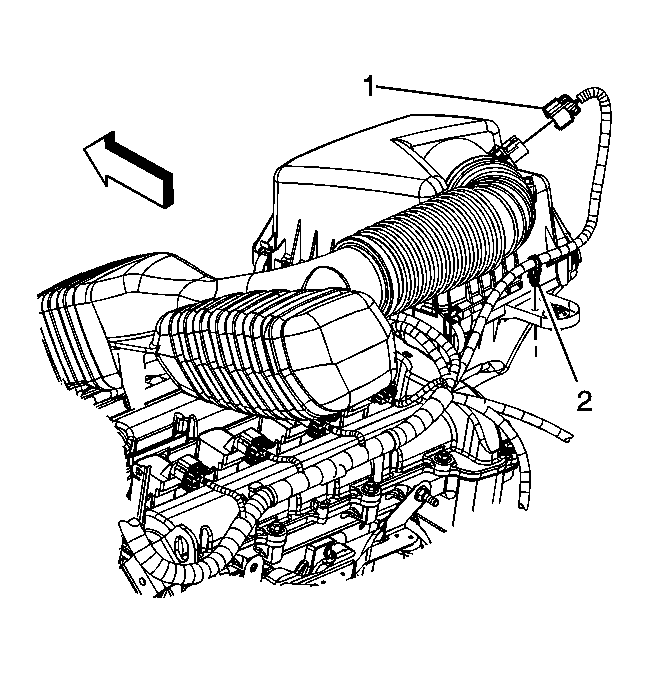

    3. Fig 2: Locating Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor Connector
    GM1814555Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
  4. Install the engine wiring harness retainer (2) to the air cleaner assembly.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
