Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

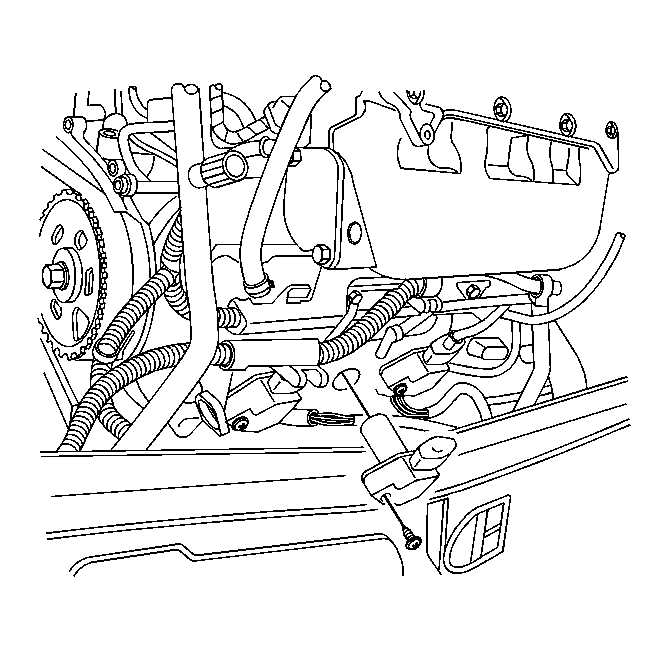

    Fig 1: View Of Engine Coils
    GM1227041Courtesy of GENERAL MOTORS CORP.
  1. Install the engine coils.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine coil bolts.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

  3. Connect the electrical connectors.
