Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

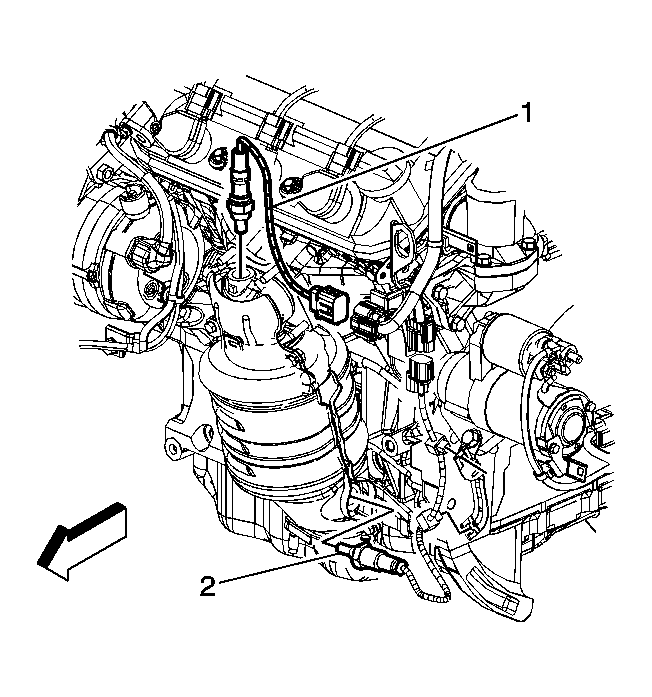

Fig 1: View Of Bank 2 Heated Oxygen Sensor 1 Using The J39194-C

Courtesy of GENERAL MOTORS CORP.

Apply a small amount of the anti-seize compound SA P/N 21485279, or equivalent, to the threads of the heated oxygen sensor.

NOTE: Refer to Fastener Notice .

Install the bank 2 heated oxygen sensor 1 using the J 39194-C .
Tighten: Tighten the oxygen sensors (exhaust manifold) to 44 N.m (33 lb ft).

Fig 2: View Of Wiring Harness Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Connect the heated oxygen sensor harness connector (1). Make sure the locking tab is in the full closed position.
Start the engine and make sure no exhaust leaks exist.
