Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

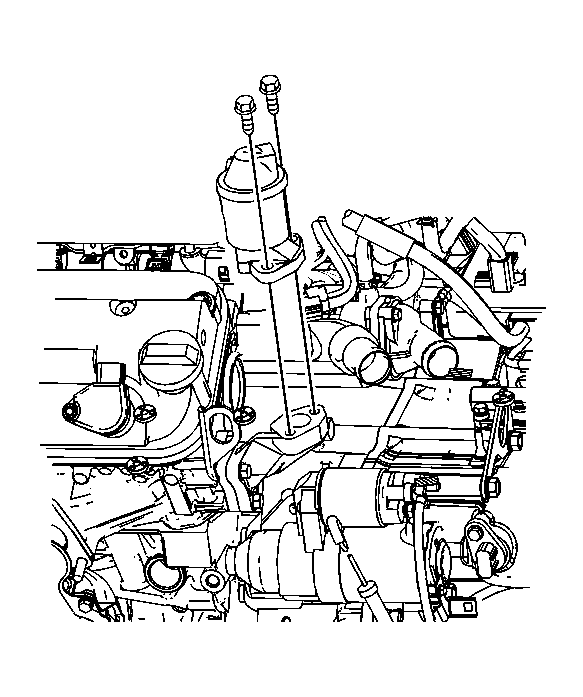

    Fig 1: View Of Exhaust Gas Recirculation (EGR) Valve
    GM1237597Courtesy of GENERAL MOTORS CORP.
  1. Install the EGR valve with a new gasket to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the EGR valve nuts.

    Tighten:  Tighten the nuts to 22 N.m (16 lb ft).

  3. Connect the EGR valve electrical connector.
