Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

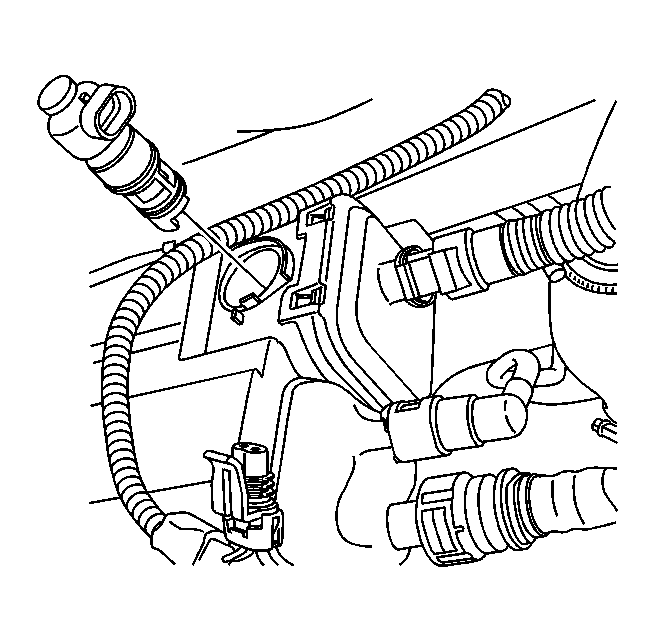

    Fig 1: View Of EVAP Canister Vent Valve
    GM889736Courtesy of GENERAL MOTORS CORP.
  1. Insert the EVAP canister vent solenoid valve into the EVAP canister, with the valve aligned to the released position.

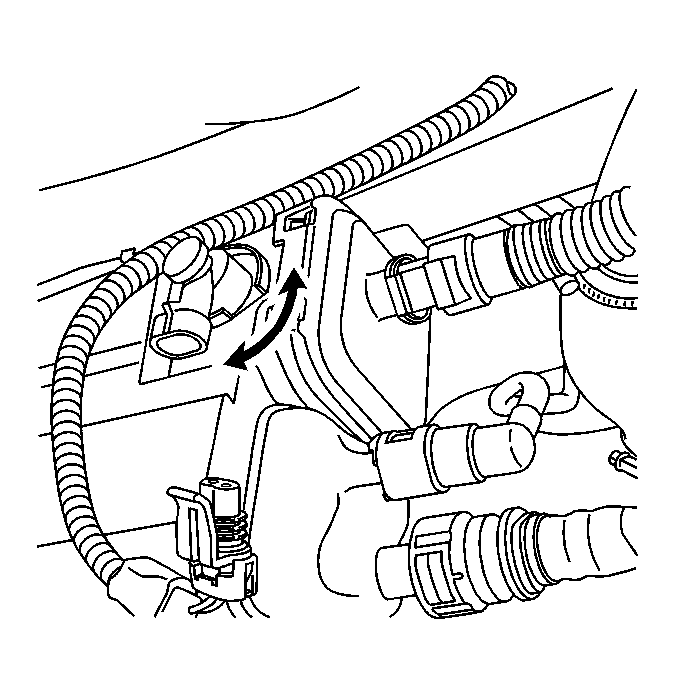

    2. Fig 2: Rotating EVAP Canister Vent Valve
    GM889735Courtesy of GENERAL MOTORS CORP.
  2. Rotate vent valve clockwise to secure into the locked position.
    3. Fig 3: View Of EVAP Canister-To-Body Underbody Fasteners
    GM1226414Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the EVAP canister vent valve.
  4. Connect the EVAP lines.
    5. NOTE: Refer to Fastener Notice .
  5. Install the EVAP canister and bolts.

    Tighten:  Tighten the bolts to 8 N.m (71 lb in).

  6. Lower the vehicle.
