Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EVAP canister purge valve on to the purge bracket.

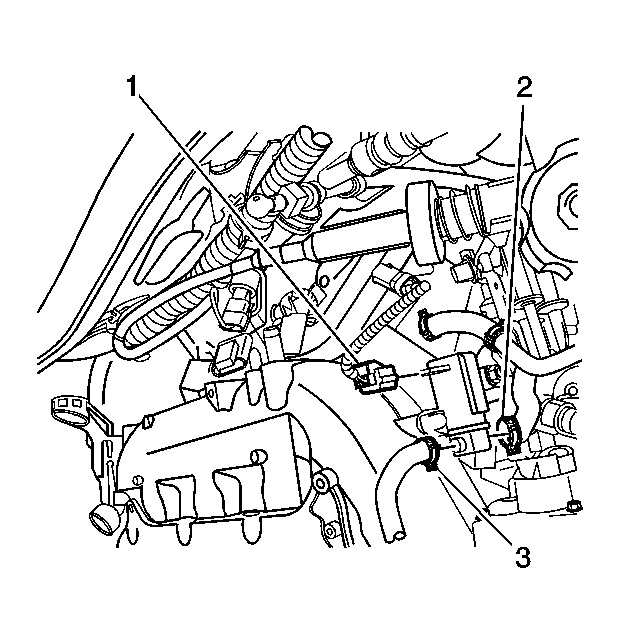

    2. Fig 1: View Of Evaporative Emission (EVAP) Canister Purge Valve
    GM1226471Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the EVAP canister purge valve and bracket.

    Tighten:  Tighten the purge bracket nut to 8 N.m (71 lb in).

  3. Connect the purge pipe (2) to the EVAP canister purge valve.
  4. Connect the vacuum pipe (3) to the EVAP canister purge valve.
  5. Connect the EVAP canister purge valve harness connector (1).
