Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Timing Belt Cover Replacement .

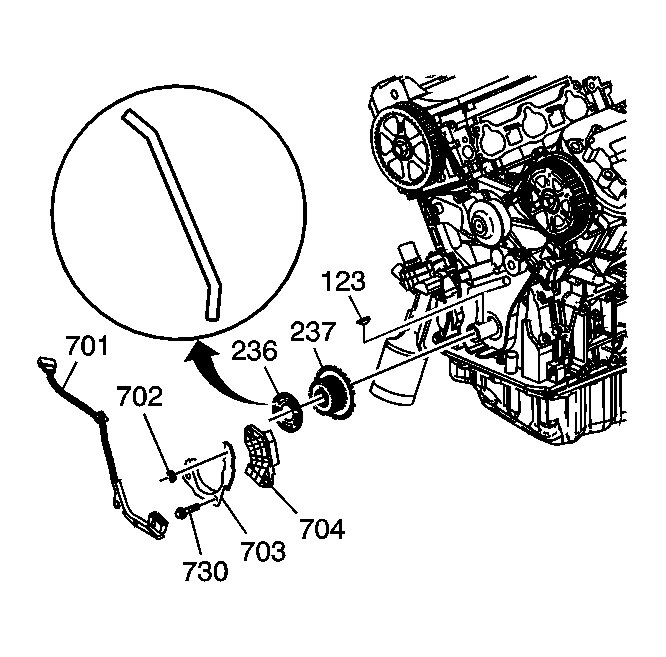

    2. Fig 1: View Of Crankshaft Gear
    GM897067Courtesy of GENERAL MOTORS CORP.
  2. Remove the timing belt guide (703).
  3. Remove the crank sensor and harness.
