Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Bolt & Camshaft Position Sensor
    GM897132Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the camshaft position (CMP) sensor (700) and bolt (723).

    Tighten:  Tighten the bolt to 4 N.m (35 lb in).

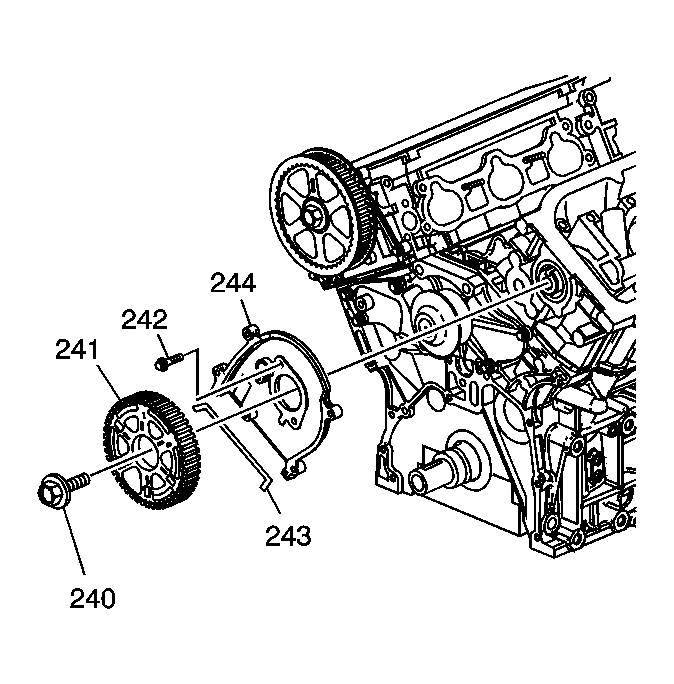

    2. Fig 2: View Of Camshaft Oil Seal
    GM897130Courtesy of GENERAL MOTORS CORP.
  2. Install the cover (244), NEW seal (243) and bolts (242).

    Tighten:  Tighten the bolts to 22 N.m (16 lb ft).

  3. Install the left camshaft sprocket. Refer to Camshaft Drive Sprocket Replacement - Left Side .
