Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

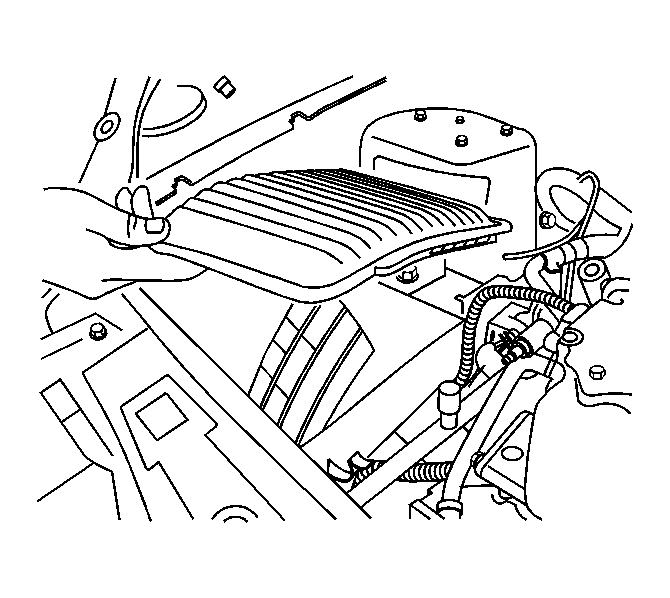

Fig 1: View Of Air Filter Assembly

Courtesy of GENERAL MOTORS CORP.

Install the air filter assembly.

Fig 2: View Of Filter Element & Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly lid into position.
Fasten the clips into position inside of the air cleaner.
Install the outlet resonator/duct assembly into position. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Fig 3: View Of Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Tighten the clamp at the air cleaner assembly.
Tighten: Tighten the clamp to 4 N.m (35 lb in).
