Exhaust Gas Recirculation (EGR) Valve

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

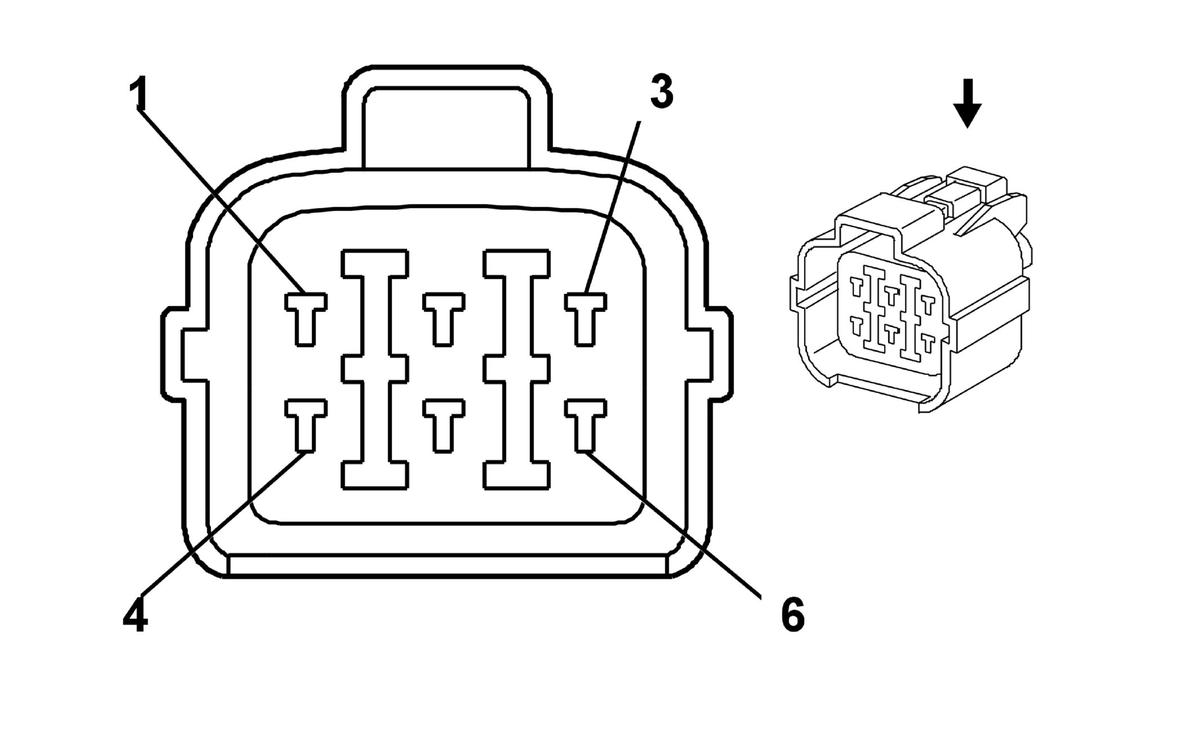

Fig 1: Exhaust Gas Recirculation (EGR) Valve Connector End Views
GM1290157Courtesy of GENERAL MOTORS CORP.
Exhaust Gas Recirculation (EGR) Valve Connector Parts Information

Connector Part Information
  • OEM: 6189-0133
  • Service: See Catalog
  • Description: 6-Way F HX Series (GY)
Exhaust Gas Recirculation (EGR) Valve Connector Terminal Idnetification

Pin Wire Color Circuit No. Function
1 YE/BU 605 5-Volt Reference
2 GN/YE 2751 Low Reference
3 WH/BK 5763 EGR Valve Position Signal
4 BK 450 Ground
5 - - Not Used
6 BU/RD 435 EGR Solenoid Control
