Engine Coolant Temperature (ECT) Sensor

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

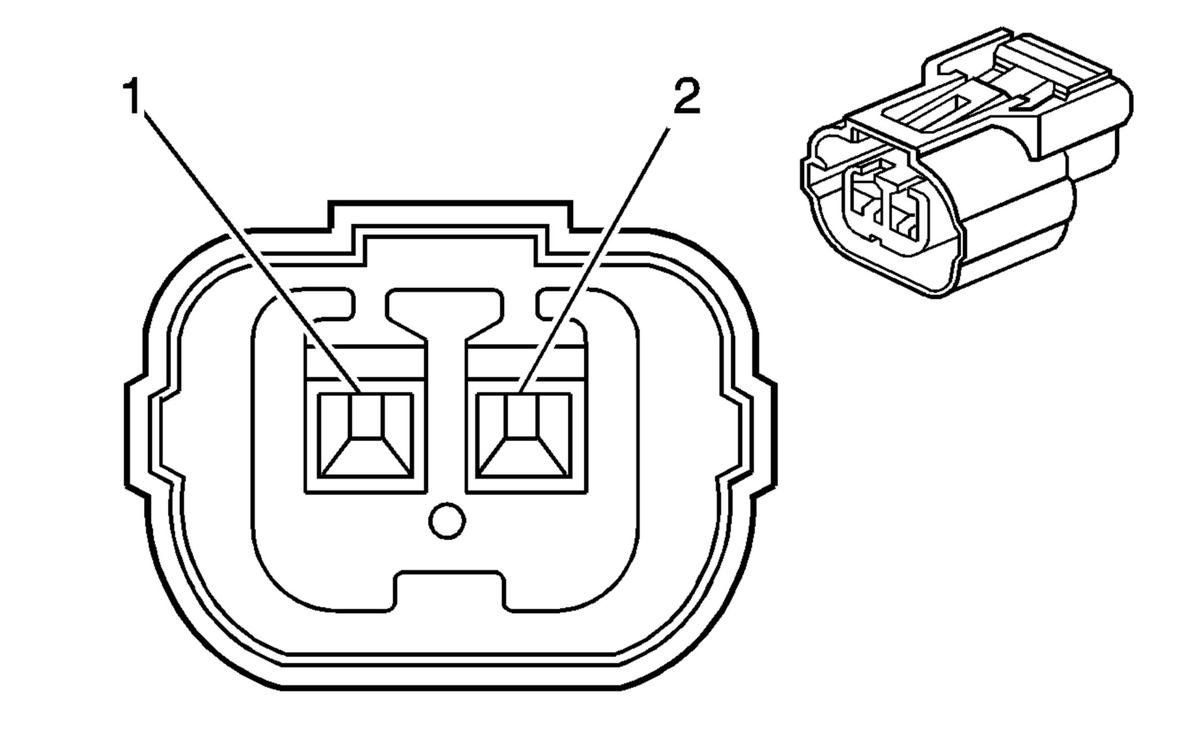

Fig 1: Engine Coolant Temperature (ECT) Sensor Connector End Views
GM1290303Courtesy of GENERAL MOTORS CORP.
Engine Coolant Temperature (ECT) Sensor Connector Parts Information

Connector Part Information
  • OEM: 6189-0890
  • Service: See Catalog
  • Description: 2-Way F HX Series (BK)
Engine Coolant Temperature (ECT) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 GN/YE 2751 Low Reference
2 RD/WH 410 ECT Sensor Signal
