Camshaft Position (CMP) Sensor

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

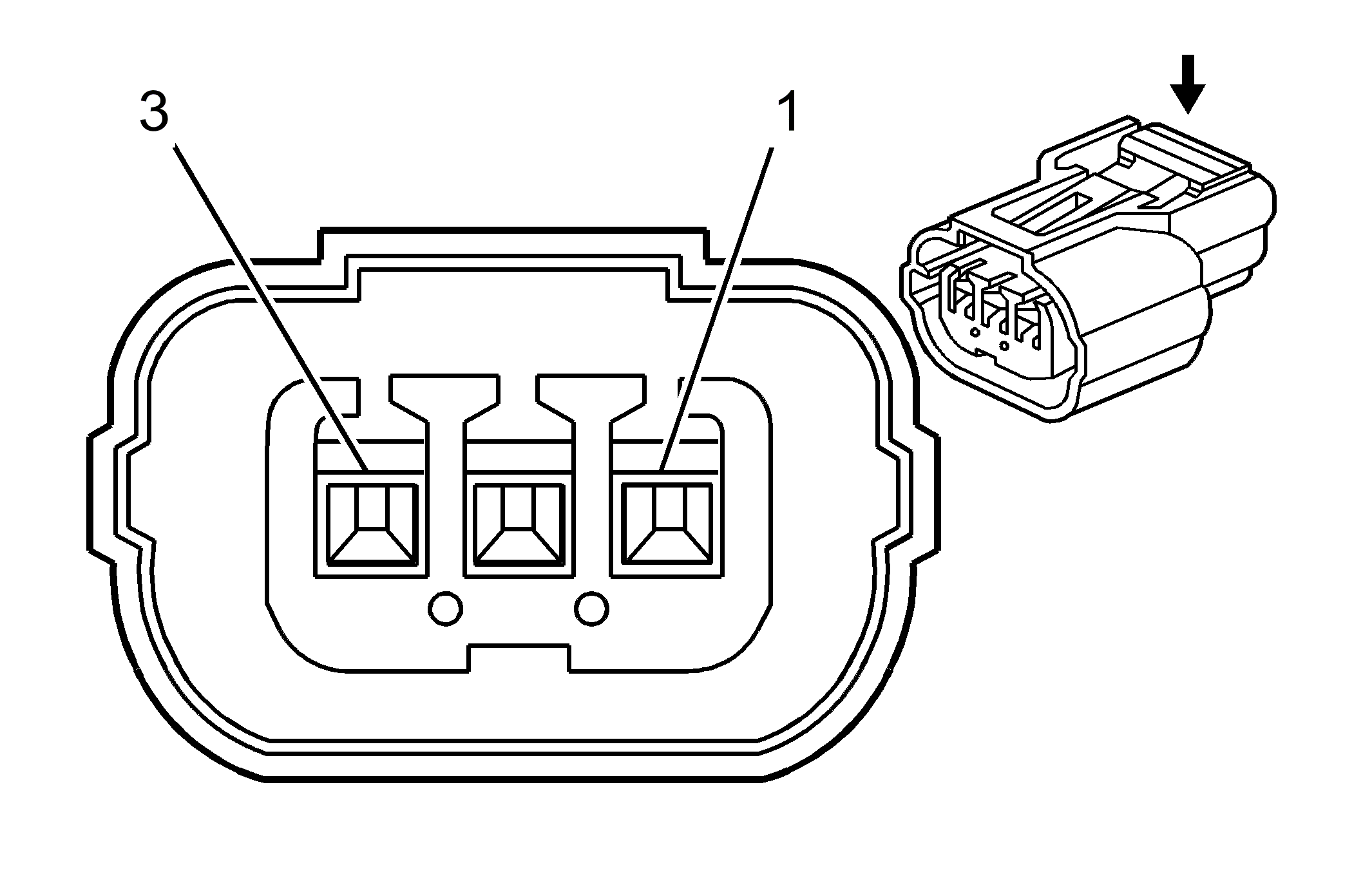

Fig 1: Camshaft Position (CMP) Sensor Connector End Views
GM1290302Courtesy of GENERAL MOTORS CORP.
Camshaft Position (CMP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 6189-0887
  • Service: See Catalog
  • Description: 3-Way F HX Series (BU)
Camshaft Position (CMP) Sensor Connector Terminal identification

Pin Wire Color Circuit No. Function
1 WH 5290 Ignition 1 Voltage
2 BN/YE 451 Ground
3 YE 633 CMP Sensor Signal
