Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

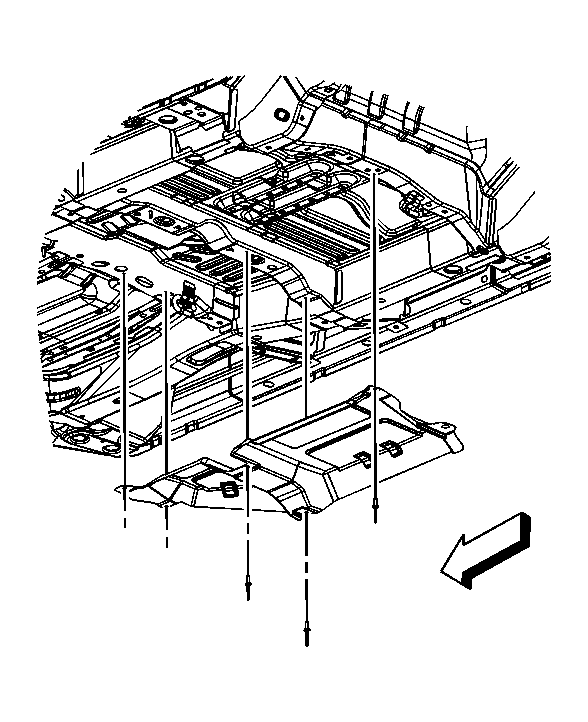

Fig 1: View Of Catalytic Converter Heat Shield

Courtesy of GENERAL MOTORS CORP.

Remove the catalytic converter. Refer to one of the following:
- Catalytic Converter Replacement (2.2L (L61) and 2.4L (LAT))
- Catalytic Converter Replacement - Left Side (3.5L (L66)) and Catalytic Converter Replacement - Right Side (3.5L (L66))

IMPORTANT: The exhaust and catalytic converter heat shields overlap and utilize common rivet attachment points.

Drill out the catalytic converter heat shield rivets.
Remove the catalytic converter heat shield.
