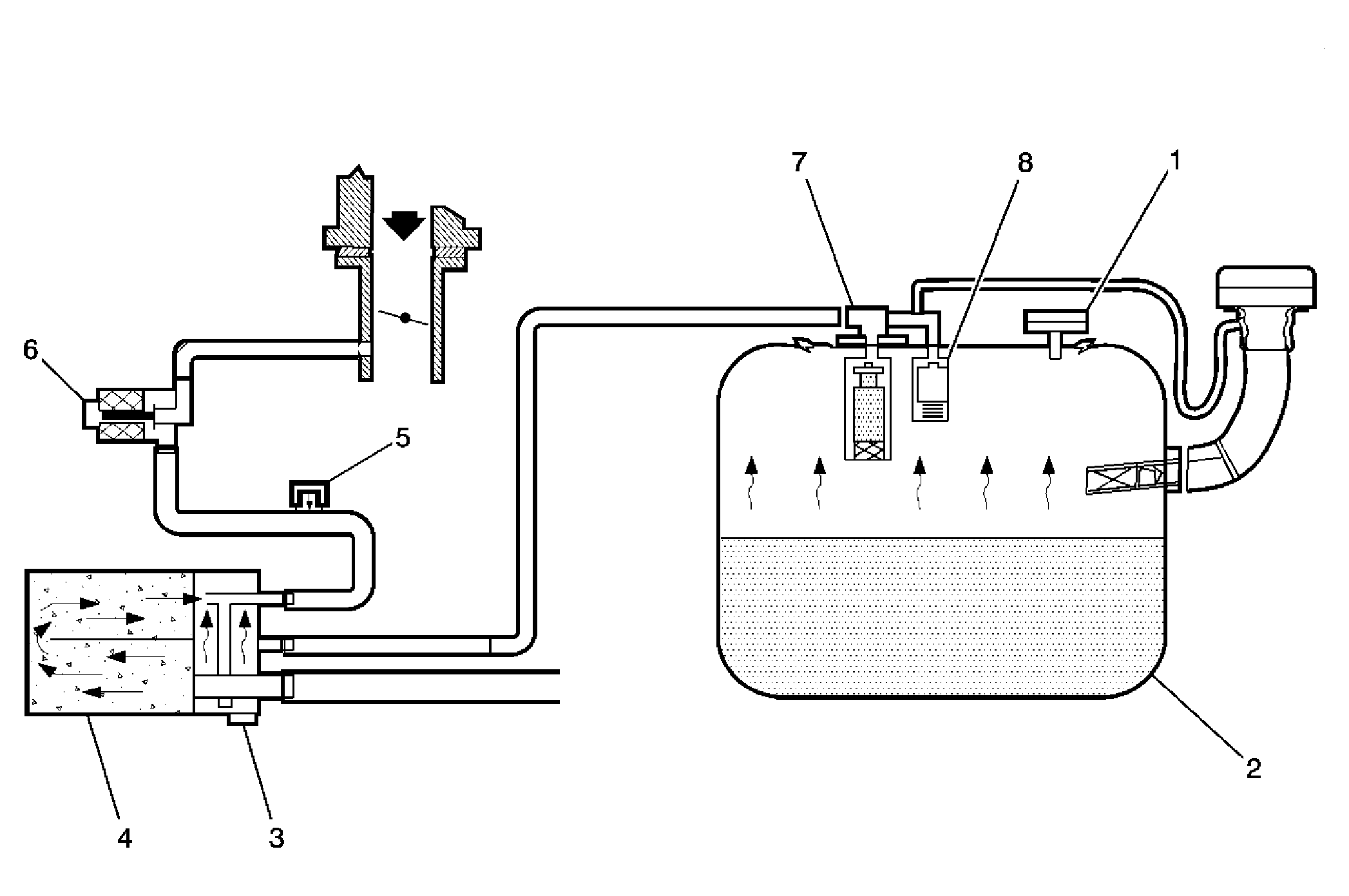

Evaporative Emissions Hose Routing Diagram
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuel Tank Pressure (FTP) Sensor |
| 2 |
Fuel Tank |
| 3 |
Evaporative Emission (EVAP) Vent Solenoid Valve |
| 4 |
EVAP Canister |
| 5 |
EVAP Service Port |
| 6 |
EVAP Purge Solenoid Valve |
| 7 |
Fill Limit Vent Valve (FLVV) |
| 8 |
Grade Vent Valve |
