Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

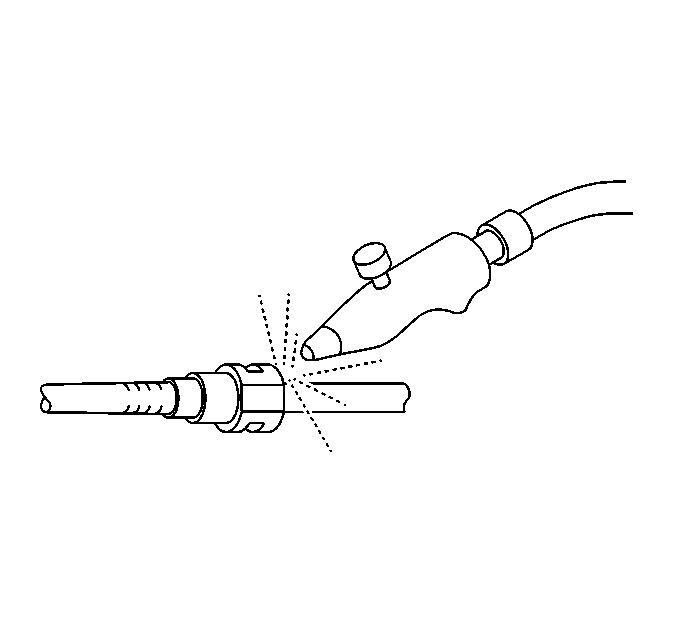

Fig 1: Blowing Dirt Out Of Fitting (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Relieve the fuel system pressure. Refer to Fuel Pressure Relief .

CAUTION: Wear safety glasses when using compressed air in order to prevent eye injury.

Blow dirt out of the fitting using compressed air.

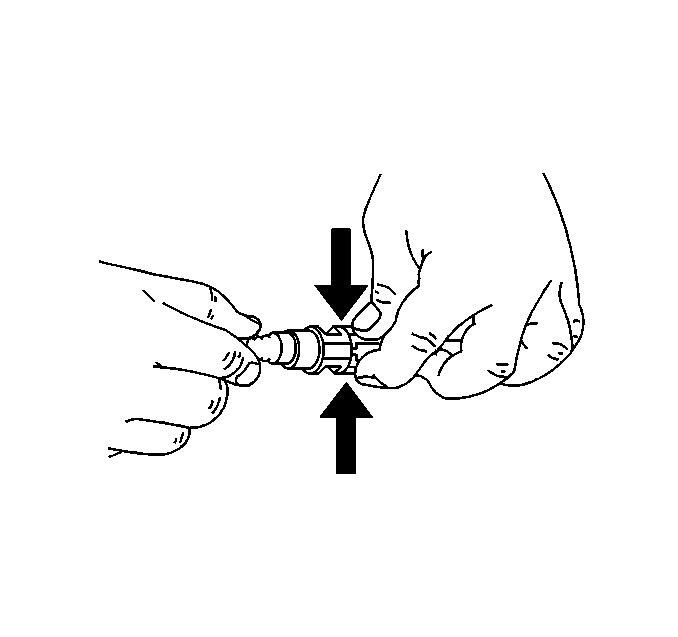

Fig 2: Squeezing Quick Connect Fitting Release Tabs (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Squeeze the plastic tabs of the male end connector.

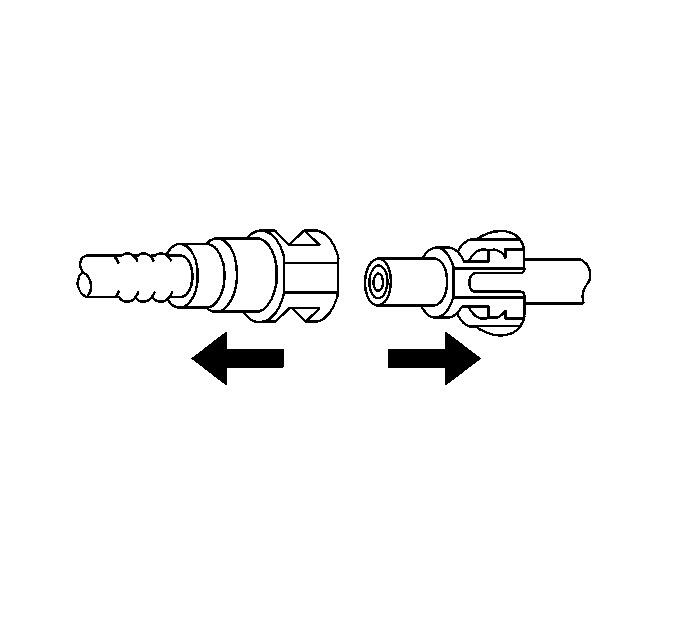

Fig 3: Pulling Connection Apart (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Pull the connection apart.

NOTE: Use an emery cloth in order to remove rust or burrs from the fuel pipe. Use a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface.

Wipe off the male pipe end using a clean shop towel.
Inspect both ends of the fitting for dirt and burrs.
Clean or replace the components as required.
