Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

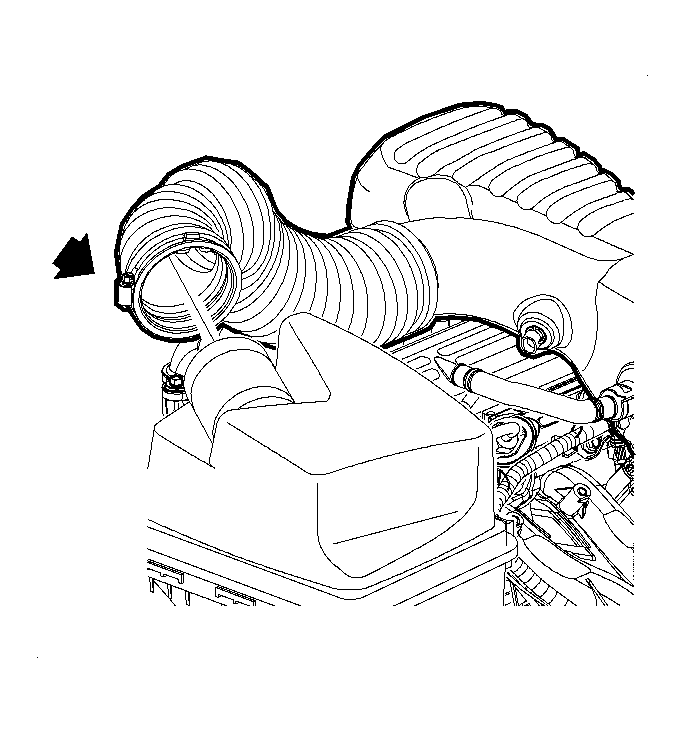

    Fig 1: Locating Air Cleaner Assembly
    GM956328Courtesy of GENERAL MOTORS CORP.
  1. Loosen the clamp at the air cleaner assembly.
  2. Unclamp the air cleaner lid
  3. Remove the air filter assembly.
