Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Intake Air Temperature Sensor Connector
    GM951542Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the intake air temperature (IAT) sensor connector.
    2. Fig 2: Identifying Outlet Resonator/Duct Assembly
    GM898897Courtesy of GENERAL MOTORS CORP.
  2. Loosen the clamp at the air cleaner assembly.
  3. Remove the outlet resonator duct from the air cleaner.
  4. Loosen the clamp at throttle body assembly.
  5. Disconnect PCV fresh air vent hose at cam cover.
  6. Remove the air outlet resonator/bolt.

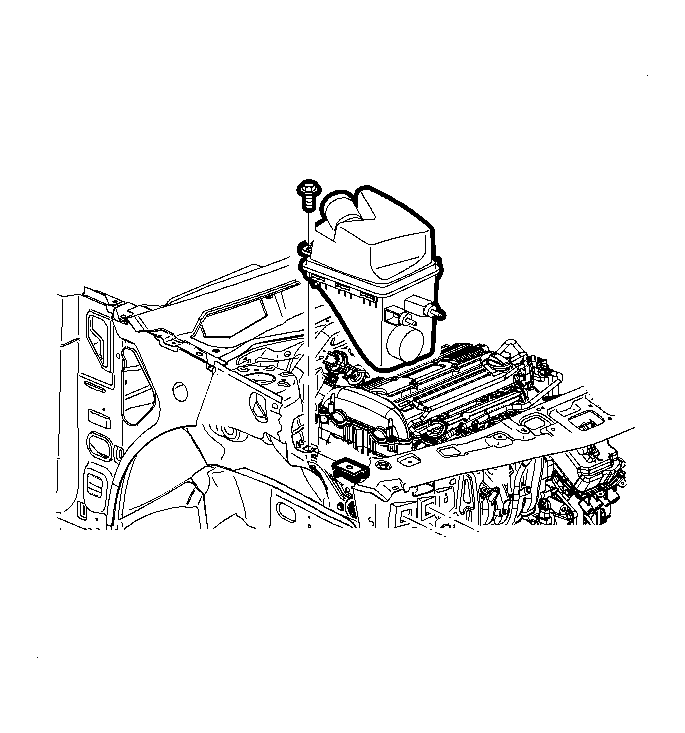

    7. Fig 3: View Of Air Cleaner Assembly
    GM927717Courtesy of GENERAL MOTORS CORP.
  7. Remove the air cleaner attachment bolt.
  8. Remove the air cleaner assembly.
