Engine Controls Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

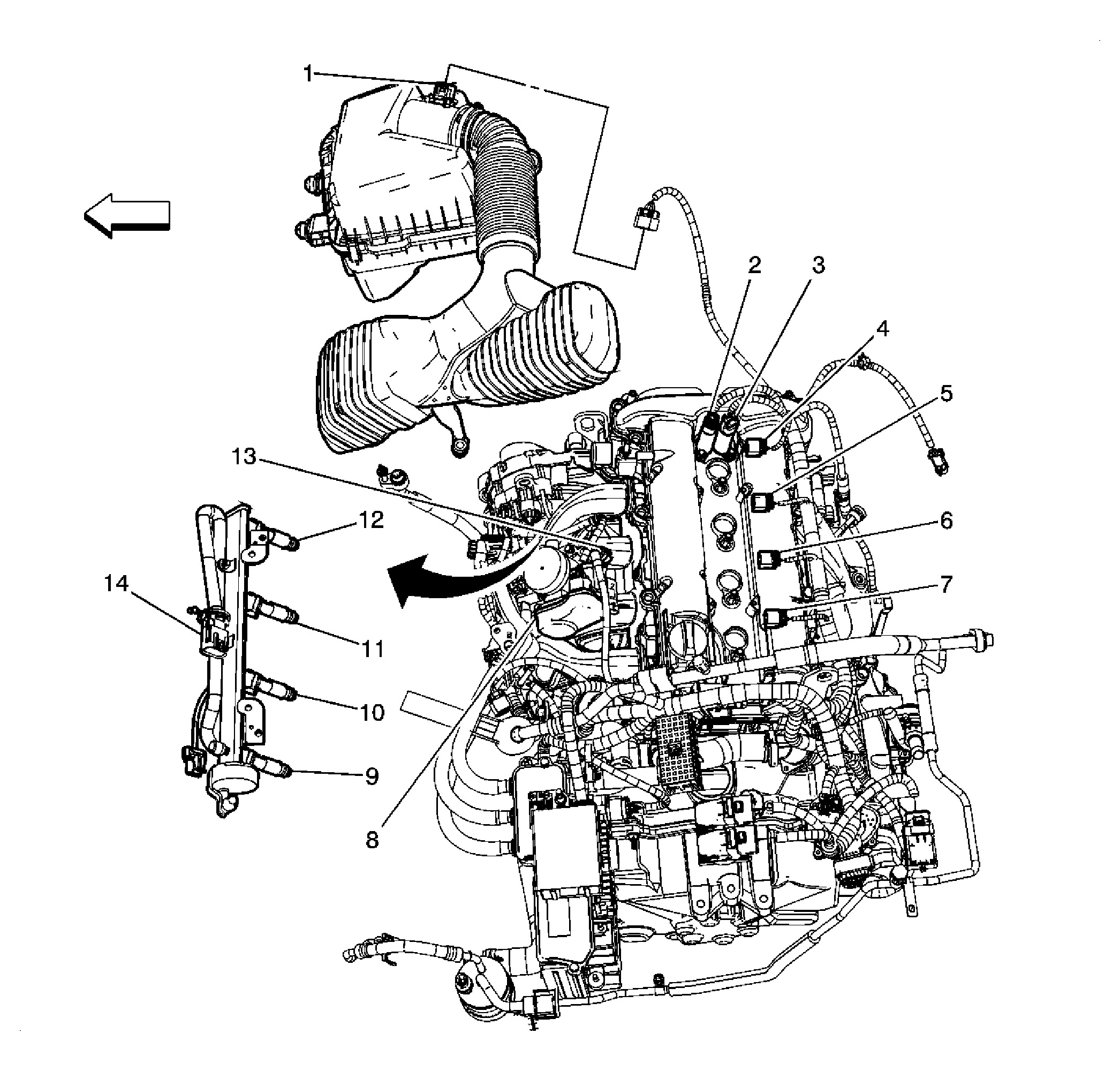

Fig 1: Top of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) Sensor
2	Camshaft Position (CMP) Actuator Solenoid - Intake
3	Camshaft Position (CMP) Actuator Solenoid - Exhaust
4	Ignition Coil Module 1
5	Ignition Coil Module 2
6	Ignition Coil Module 3
7	Ignition Coil Module 4
8	Throttle Actuator Control (TAC) Module
9	Fuel Injector 4
10	Fuel Injector 3
11	Fuel Injector 2
12	Fuel Injector 1

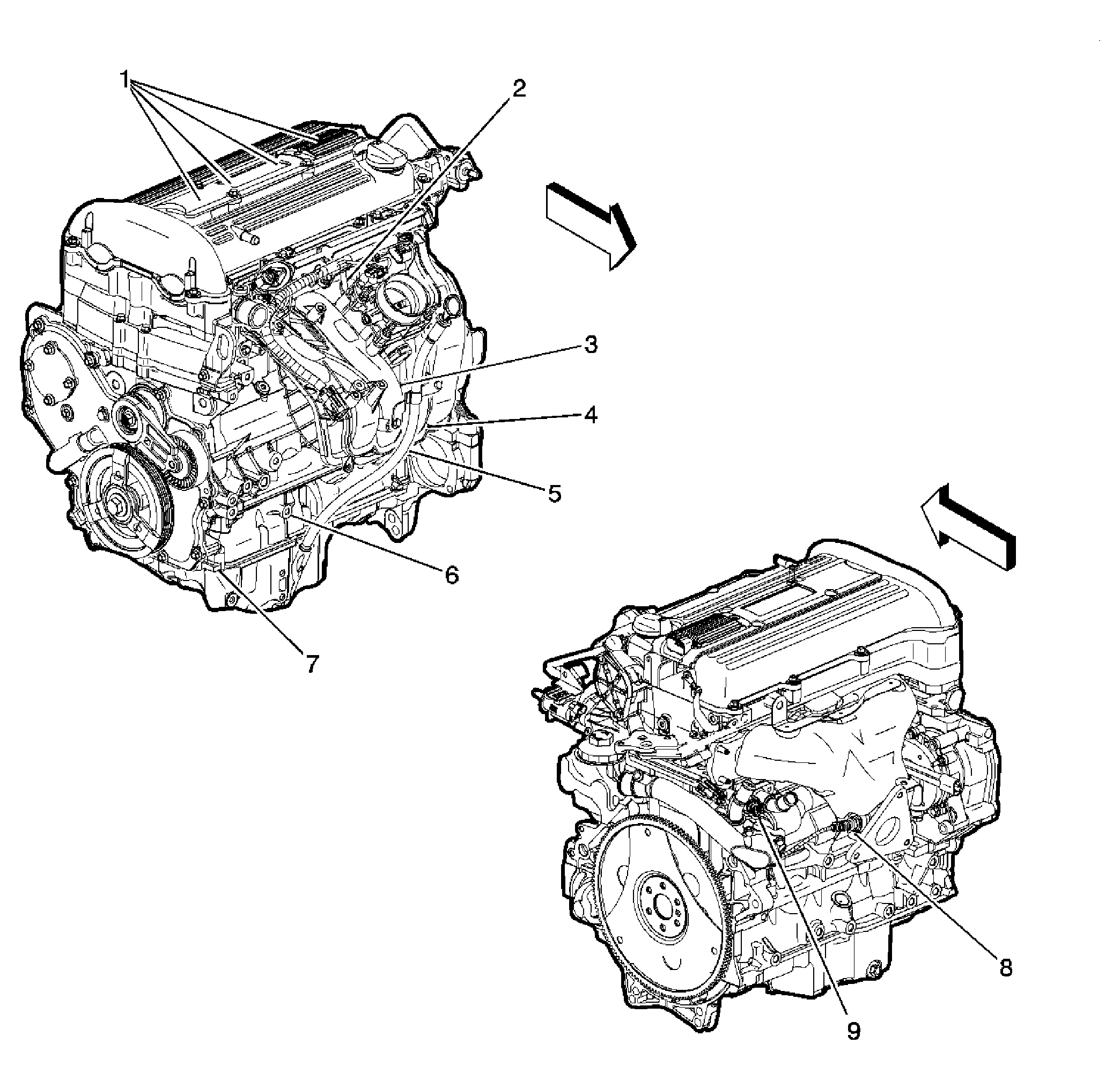

Fig 2: Engine Controls Components View - Front and Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Spark Plugs
2	Manifold Absolute Pressure (MAP) Sensor
3	Knock Sensor (KS)
4	Crankshaft Position (CKP) Sensor
5	Engine Oil Pressure (EOP) Switch
6	Generator Mounting Location
7	A/C Compressor Clutch Location
8	Heated Oxygen Sensor (HO2S) Sensor 1
9	Engine Coolant Temperature (ECT) Sensor

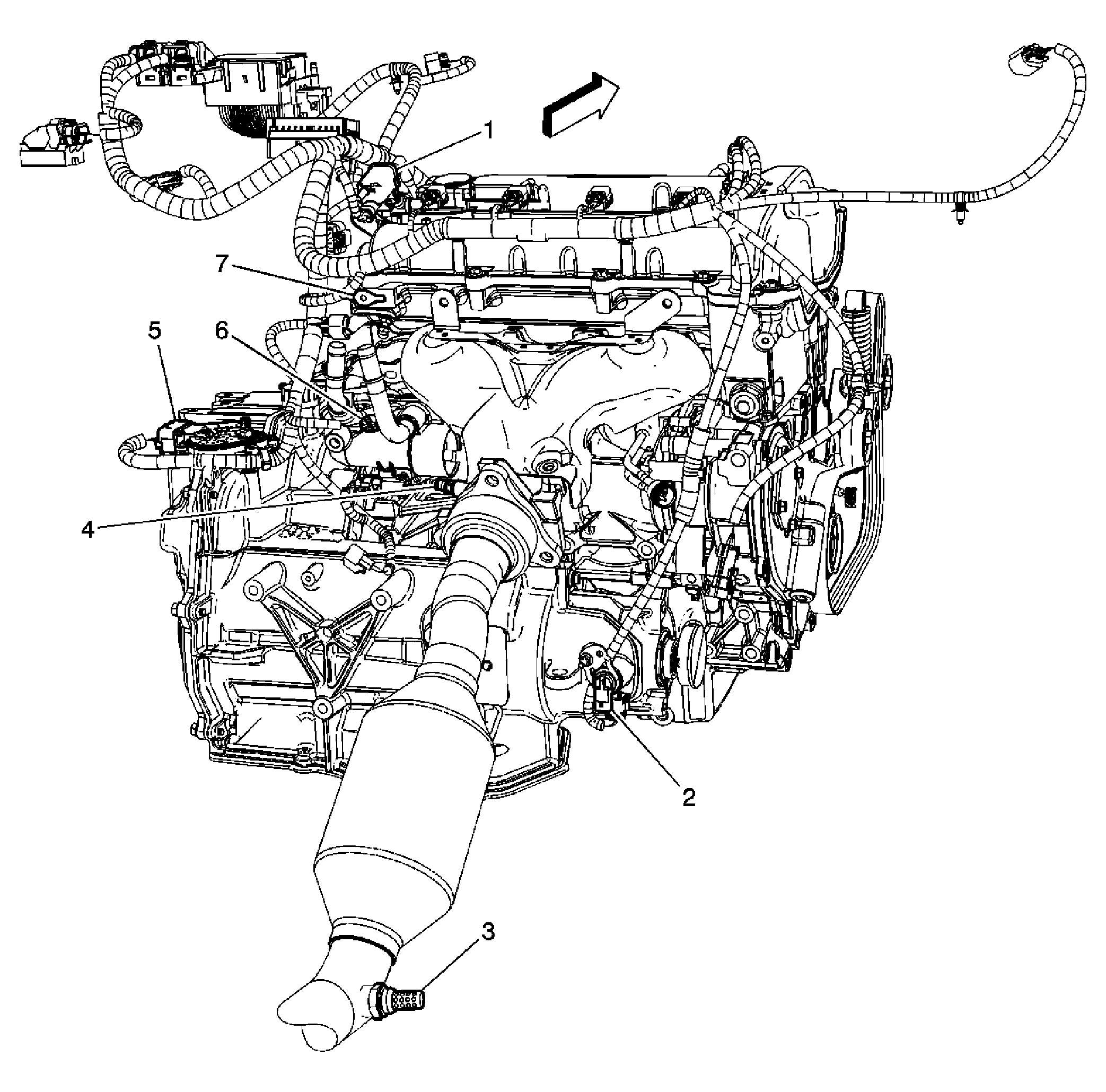

Fig 3: Rear of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emissions (EVAP) Canister Purge Solenoid
2	Vehicle Speed Sensor (VSS)
3	Heated Oxygen Sensor (HO2S) 2
4	Heated Oxygen Sensor (HO2S) 1
5	Park/Neutral Position (PNP) Switch
6	Engine Coolant Temperature (ECT) Sensor
7	G107

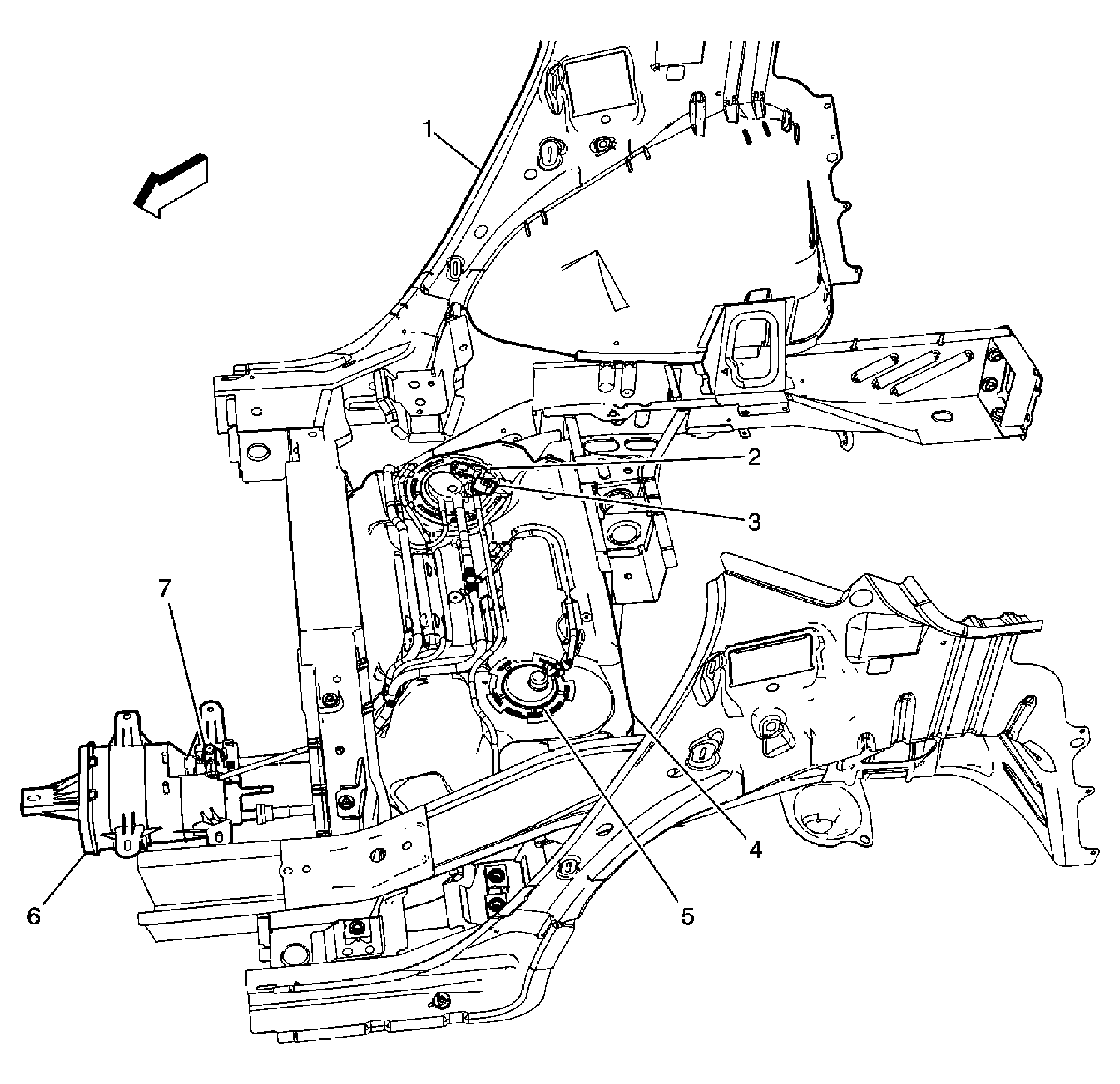

Fig 4: Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Well - RR
2	Fuel Tank Pressure (FTP) Sensor
3	Fuel Pump and Sender Assembly - Primary
4	Fuel Tank
5	Fuel Pump and Sender Assembly - Secondary
6	Evaporative Emissions (EVAP) Canister Vent Solenoid

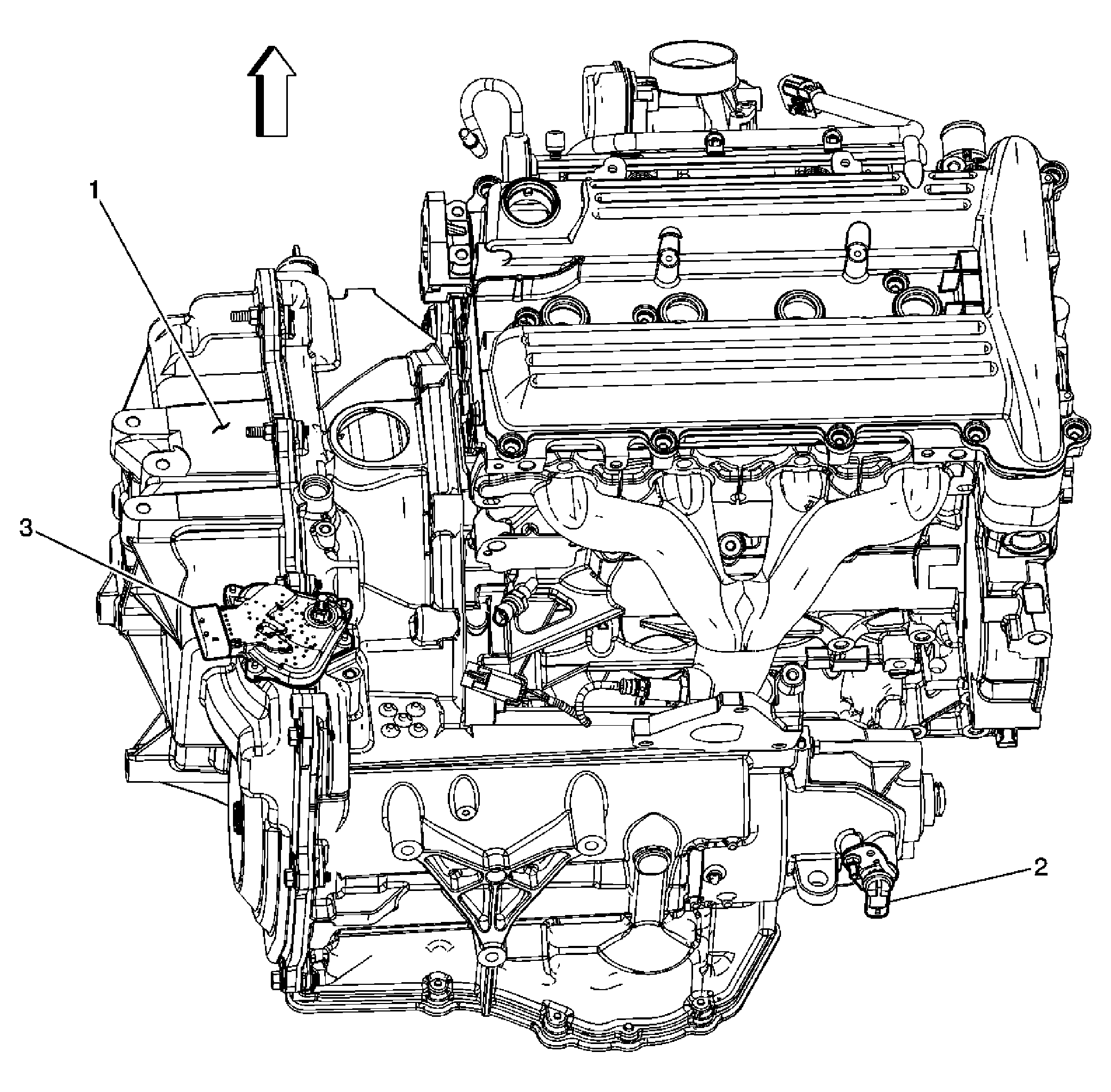

Fig 5: Transmission Components - 4T45-E

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission - 4T45-E
2	Vehicle Speed Sensor (VSS)
3	Park Neutral Position (PNP) Switch
