Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Brake Fluid Irritant Caution .

NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Clean all dirt and foreign material from the wheel cylinder brake pipe fitting and the bleeder valve.

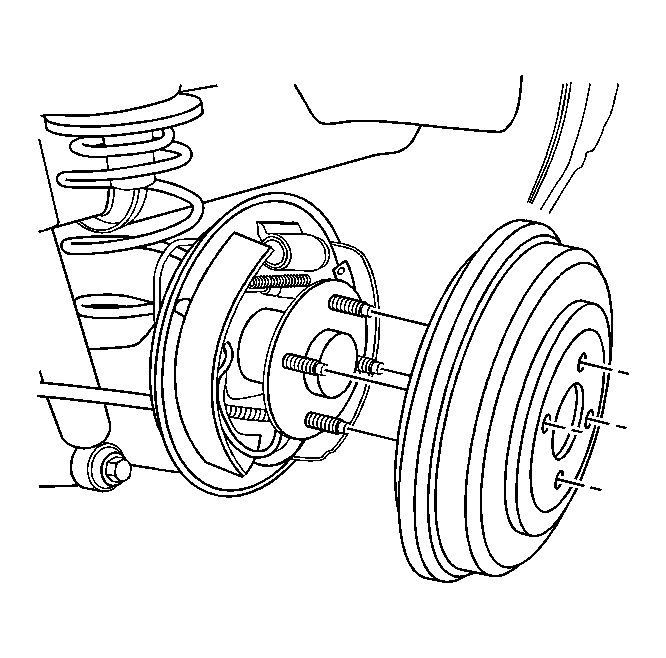

Fig 1: View Of Brake Drum

Courtesy of GENERAL MOTORS CORP.

Remove the brake drum. Refer to Brake Drum Replacement .
Remove the brake pipe nut.
Install a cap over the end of the brake pipe in order to prevent brake fluid loss and/or brake fluid contamination.

Fig 2: Removing/Installing Wheel Cylinder

Courtesy of GENERAL MOTORS CORP.

Remove the wheel cylinder bolts (2).

Fig 3: Using J 38400 To Spread The Brake Shoes Apart

Courtesy of GENERAL MOTORS CORP.

Use the J 38400 in order to spread the brake shoes apart (1). See Special Tools .
Remove the wheel cylinder.
Clean the old sealant from the backing plate where the wheel cylinder was installed. Clean the sealant from the wheel cylinder if you are reusing the wheel cylinder.
