Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Fig 1: View Of Trailing Arm Bracket To Body Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the trailing arm bracket to body bolts.
Remove the trailing arm bushing to bracket nut and bolt.

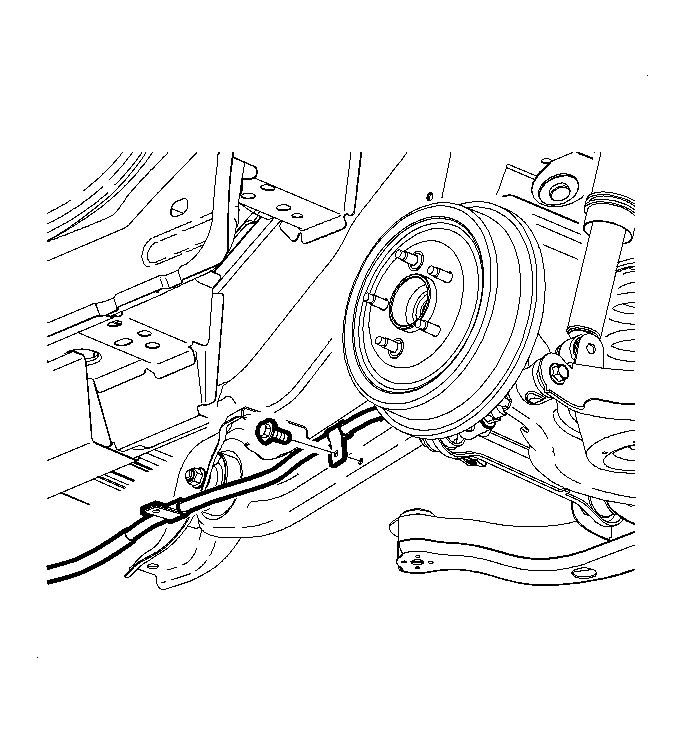

Fig 2: Park Brake Cable Clip & Trailing Arm

Courtesy of GENERAL MOTORS CORP.

Remove the park brake cable clip from the trailing arm.

Fig 3: Trailing Blade & Knuckle Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the trailing arm to knuckle bolts.
Remove the trailing arm.
