Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

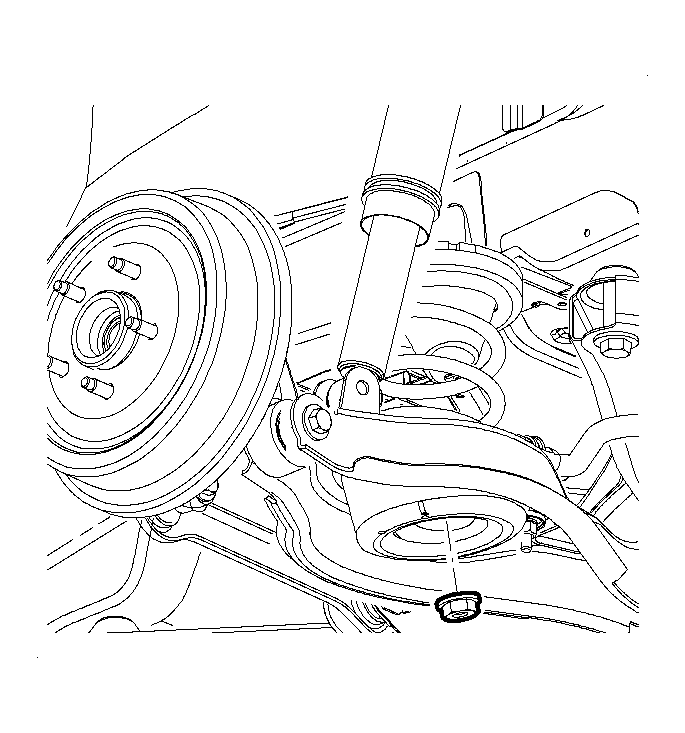

    2. Fig 1: View Of Lower Suspension Jounce Bumper Nut
    GM930250Courtesy of GENERAL MOTORS CORP.
  2. Remove the jounce bumper nut at the lower control arm.
  3. Remove the coil spring. Refer to Coil Spring Replacement .

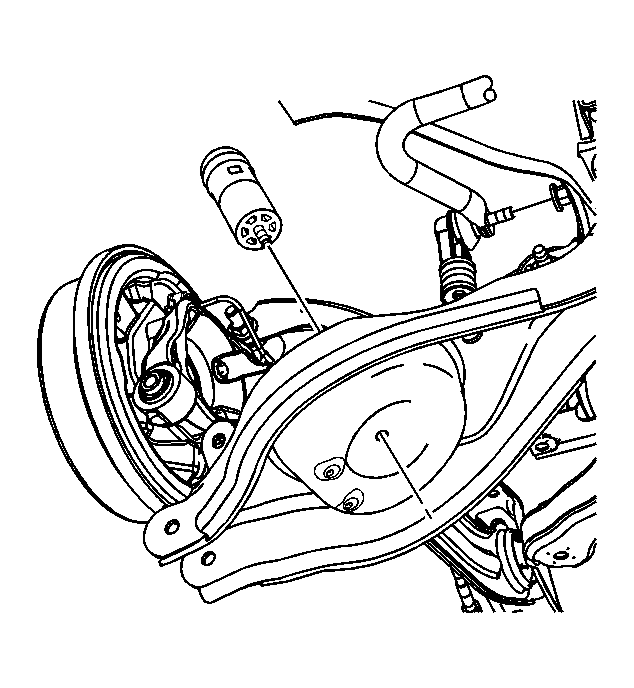

    4. Fig 2: Jounce Bumper
    GM1830273Courtesy of GENERAL MOTORS CORP.
  4. Remove the jounce bumper.
