Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install the shock to the vehicle.

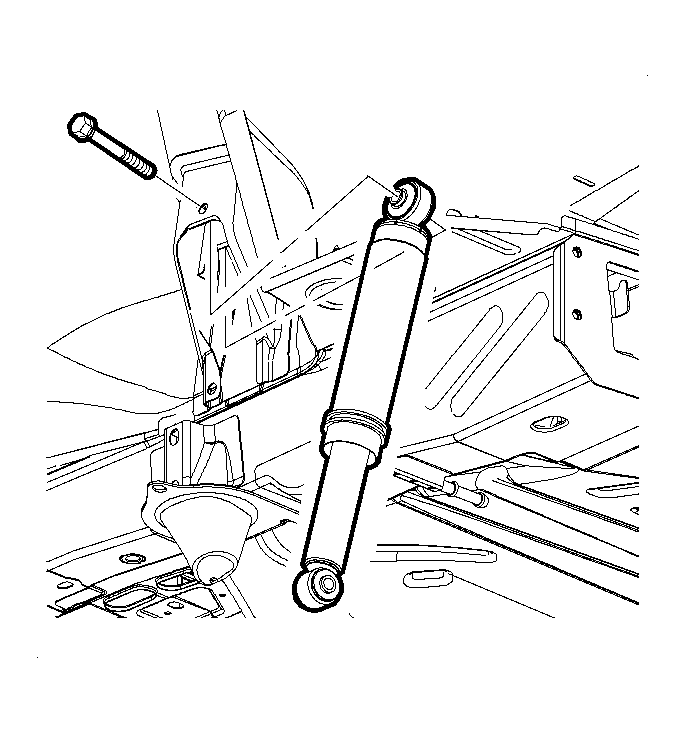

Fig 1: Upper Shock & Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the upper shock bolt.
Tighten: Tighten the bolt to 105 N.m (77 lb ft).
Install the wheelhouse liner. Refer to Rear Wheelhouse Liner Panel Replacement .

Fig 2: Removing/Installing Lower Shock Absorber Mounting Bolt & Nut

Courtesy of GENERAL MOTORS CORP.

Install the lower shock bolt.
Tighten: Tighten the bolt to 105 N.m (77 lb ft).
Lower the vehicle.
