Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Fig 1: View Of Trailing Arm Bracket To Body Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the trailing arm bracket to body bolts.

Fig 2: Tightening Upper Control Arm On The Suspension Knuckle Bolt & Nut

Courtesy of GENERAL MOTORS CORP.

If applicable, remove the ABS brake harness from the upper control arm.
Remove the upper control arm to knuckle nut and bolt.

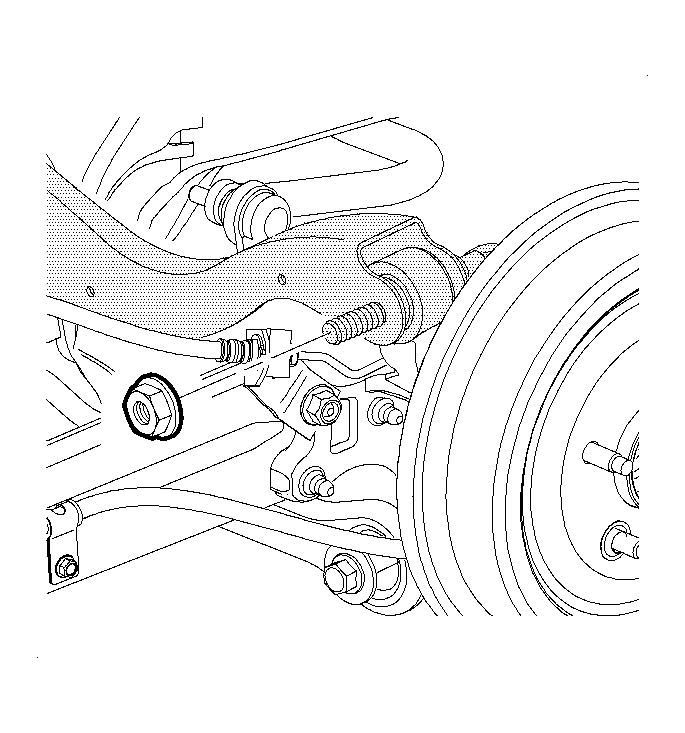

Fig 3: Rear Axle Upper Control Arm, Support Nut & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the upper control to support nut and bolt.
Remove the upper control arm.
