Antilock Brake System Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

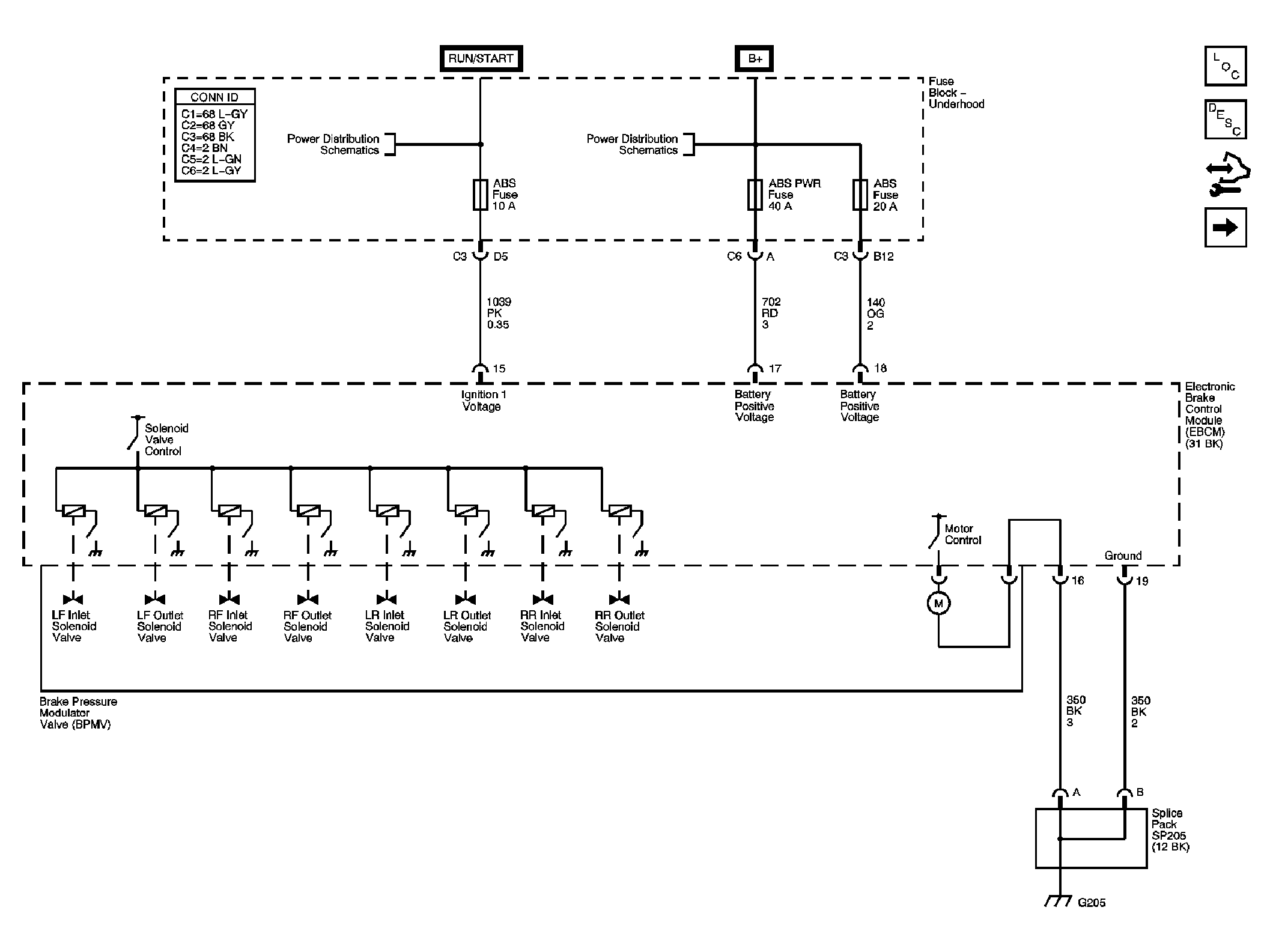

Fig 1: Power and Ground

Courtesy of GENERAL MOTORS CORP.

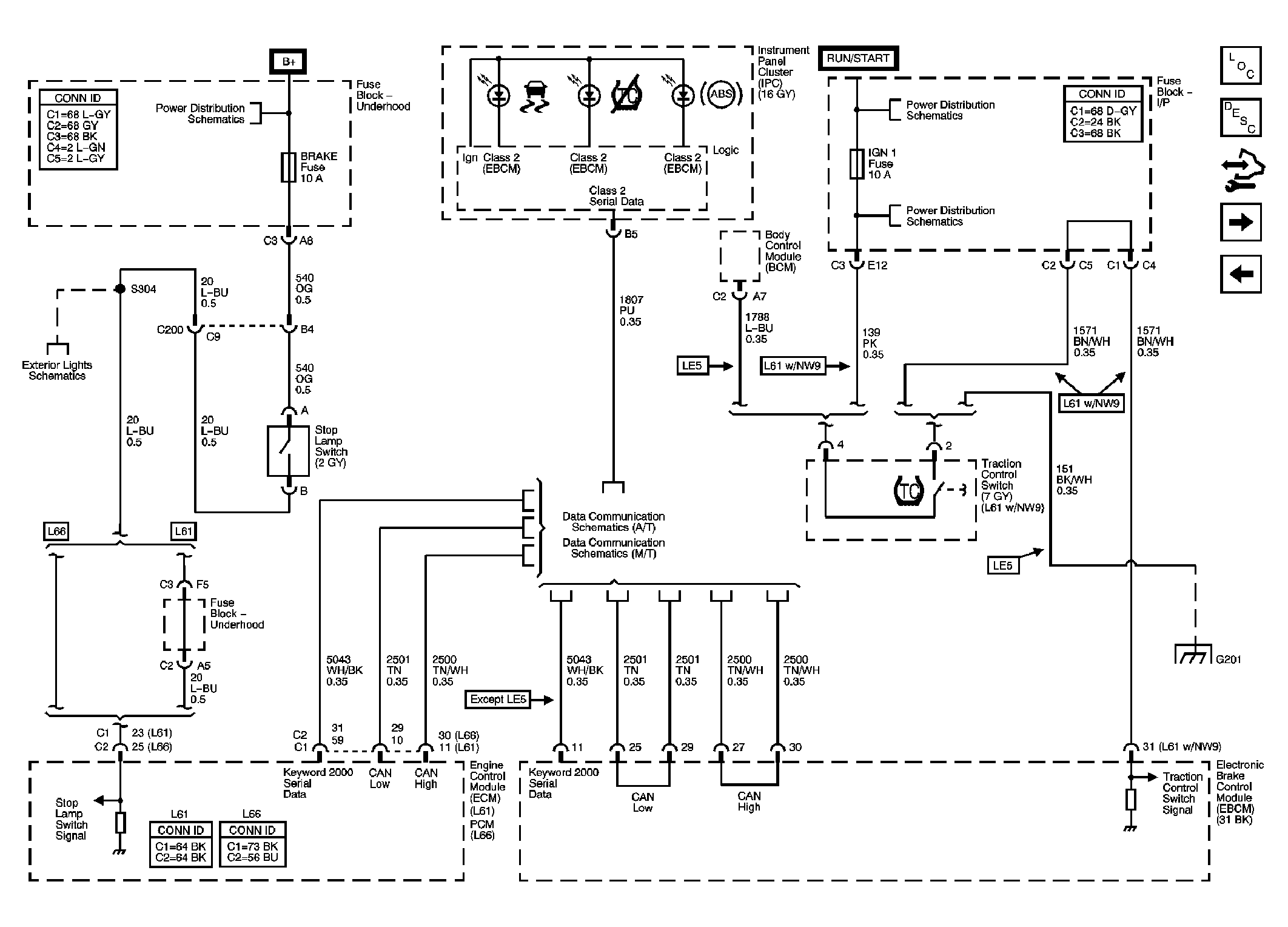

Fig 2: TC Switch, Indicators, and Stop Lamp Switch Signal

Courtesy of GENERAL MOTORS CORP.

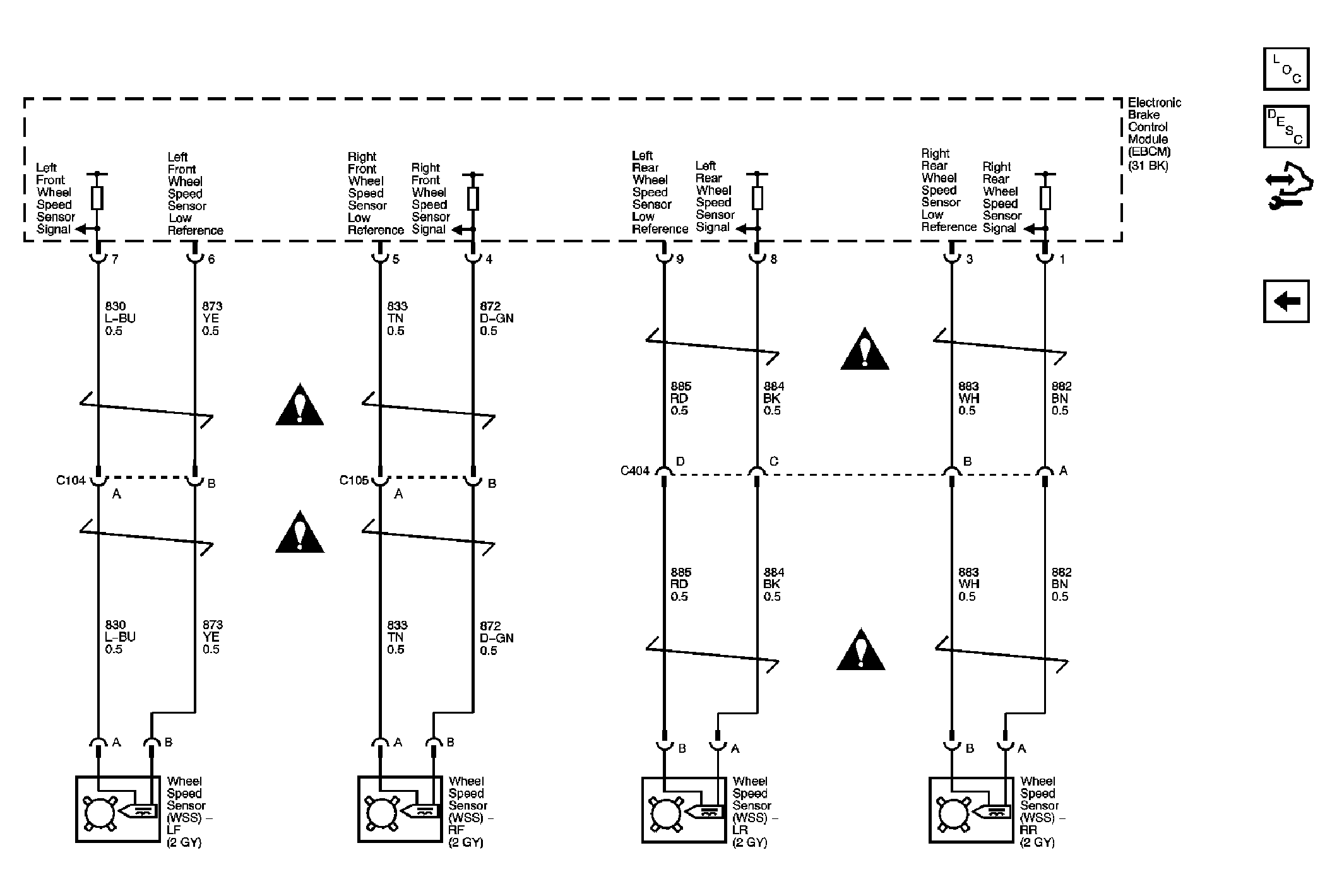

Fig 3: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
