Instrument Cluster Wiring Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

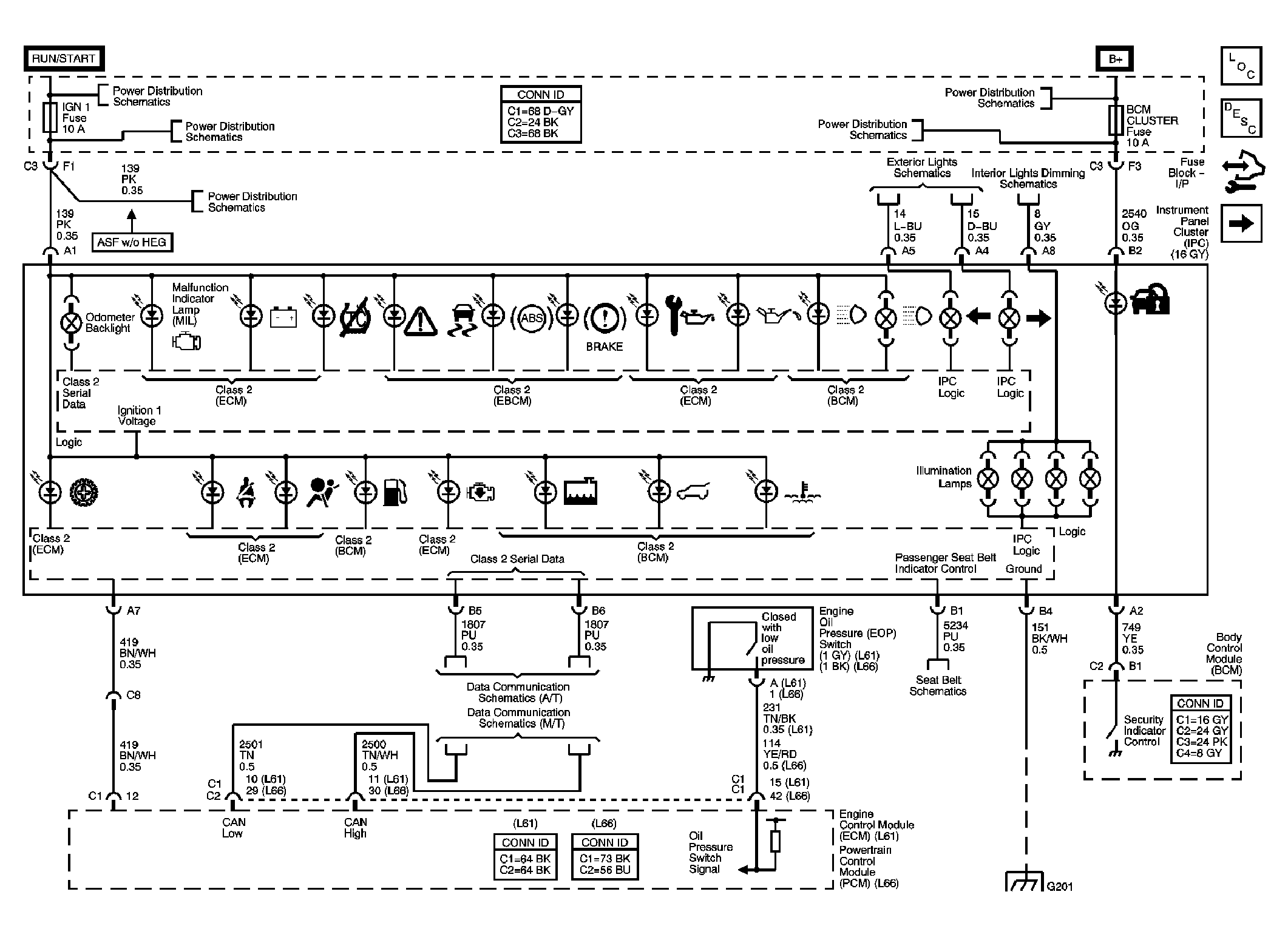

Fig 1: Indicators, Serial Data Wiring Schematic
GM1798392Courtesy of GENERAL MOTORS CORP.

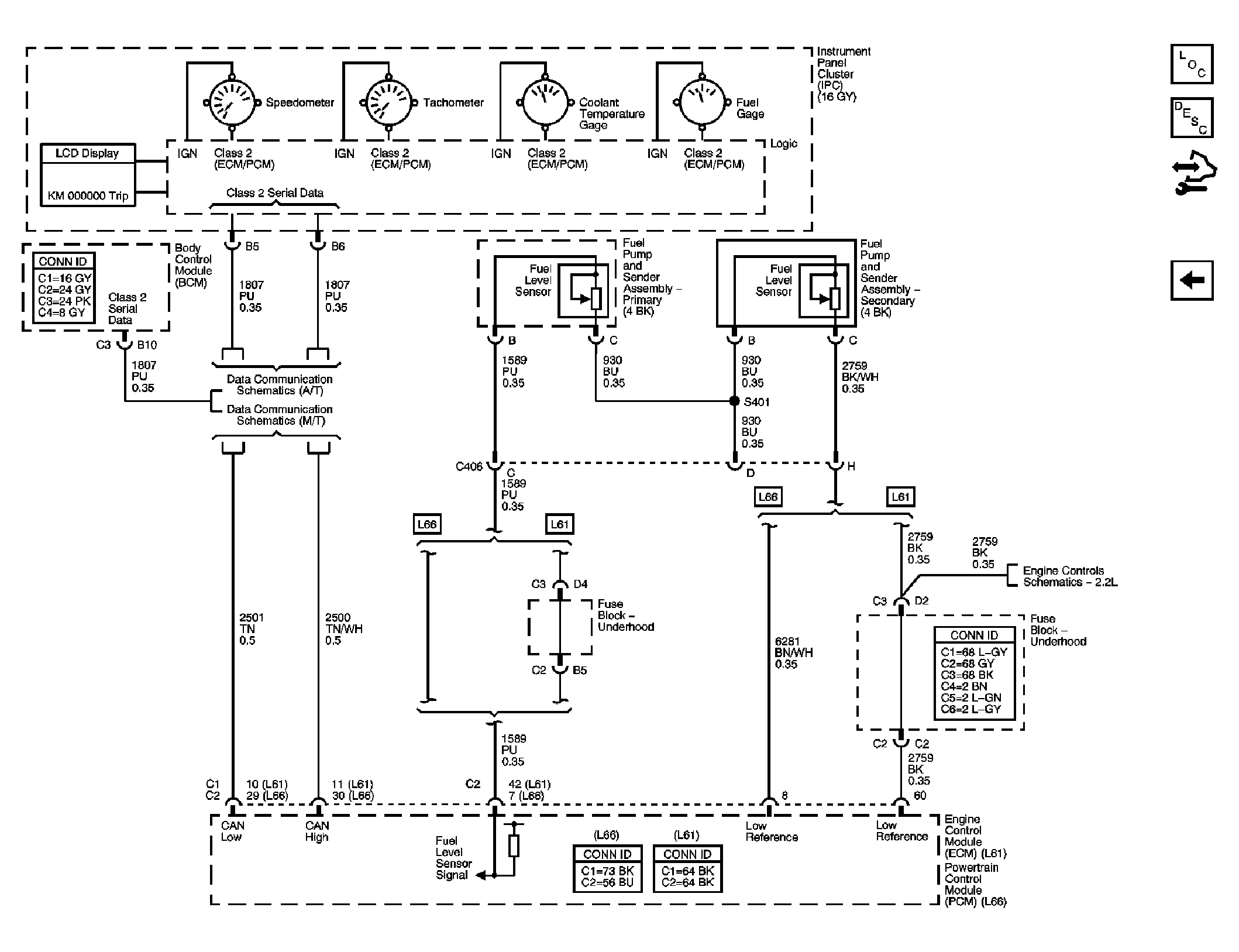

Fig 2: Gages Wiring Schematic
GM1798395Courtesy of GENERAL MOTORS CORP.
