Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

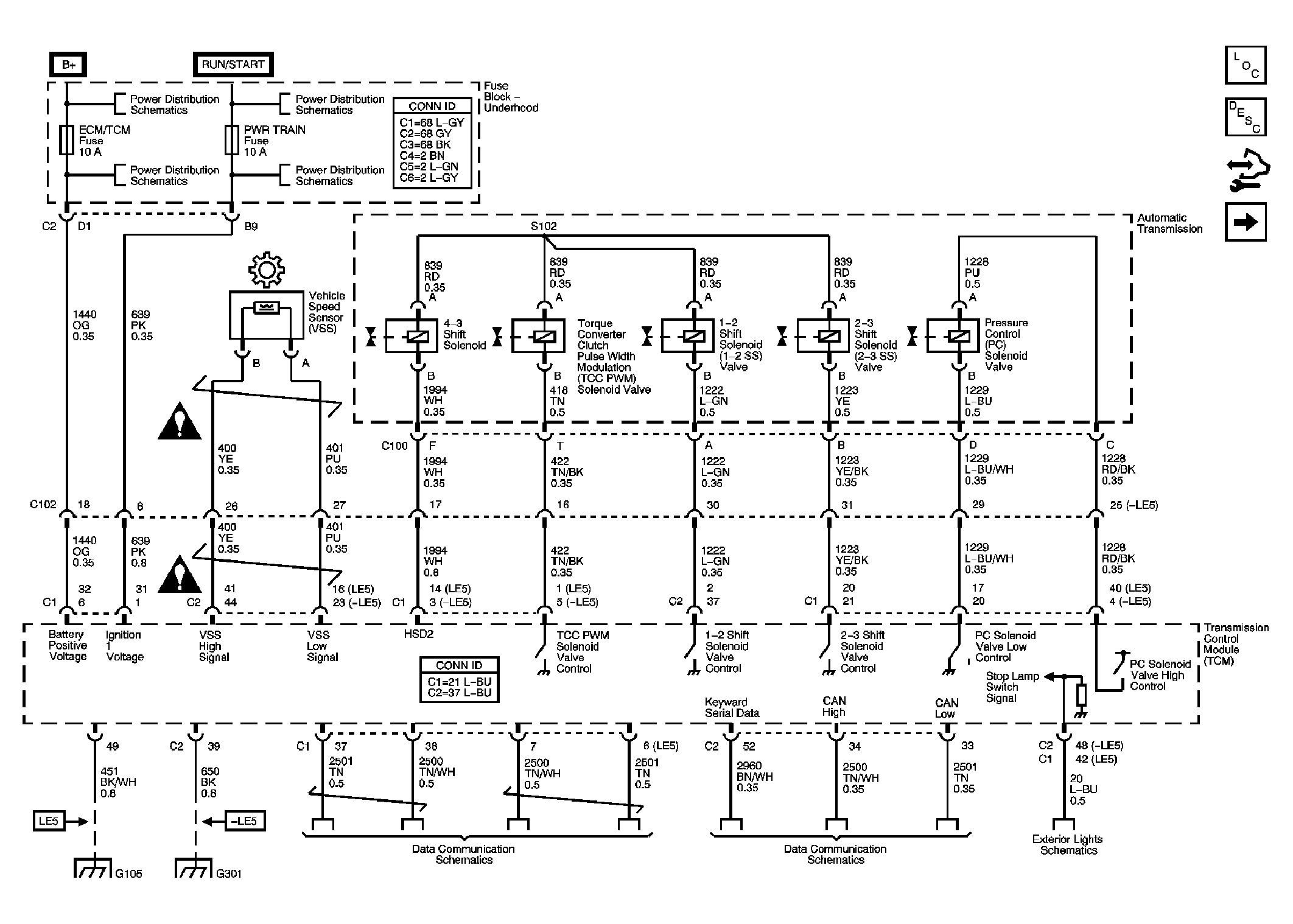

Fig 1: Power, Ground, Solenoid Controls, and VSS

Courtesy of GENERAL MOTORS CORP.

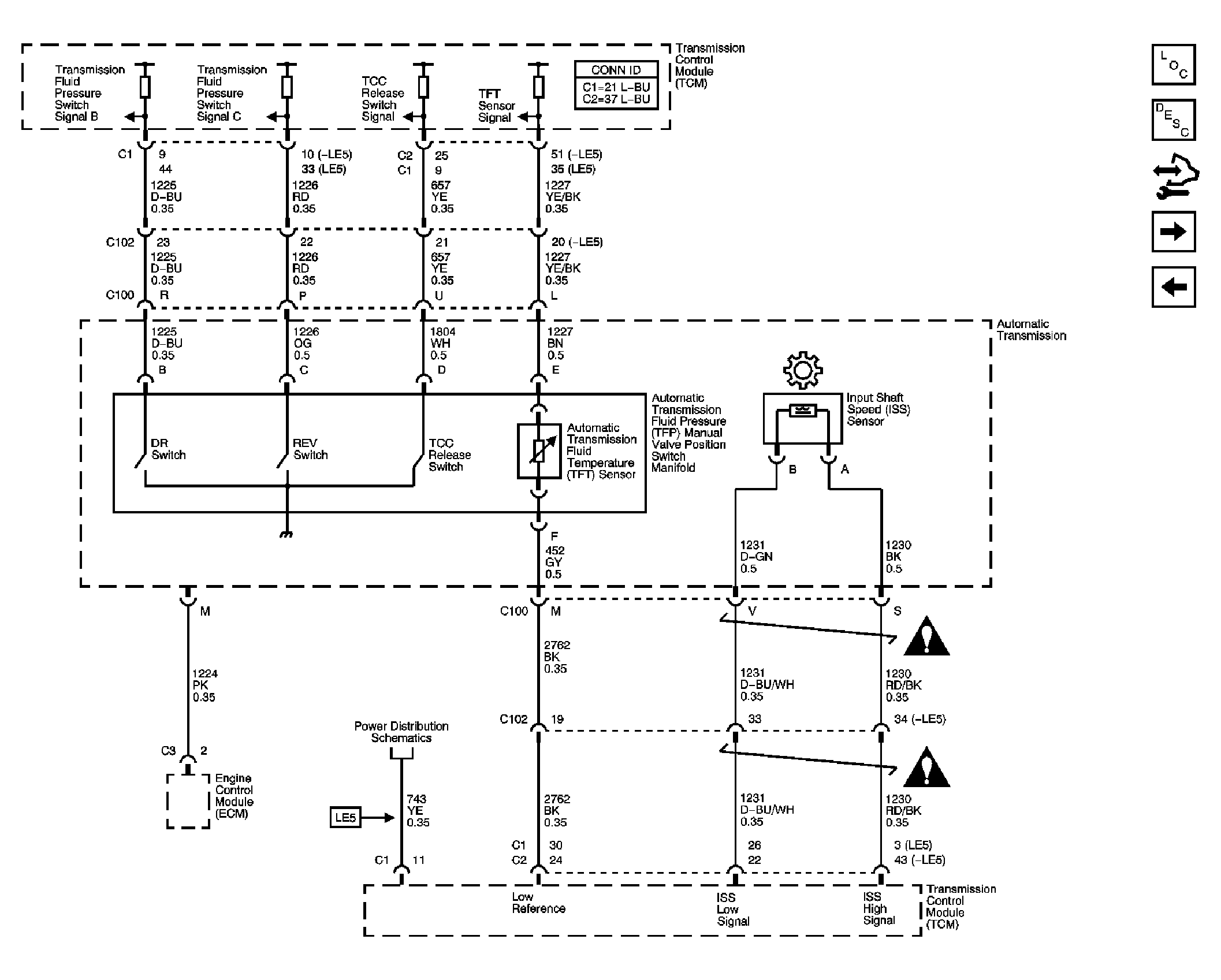

Fig 2: ISS, TFT, TFP Switches and Indicators

Courtesy of GENERAL MOTORS CORP.

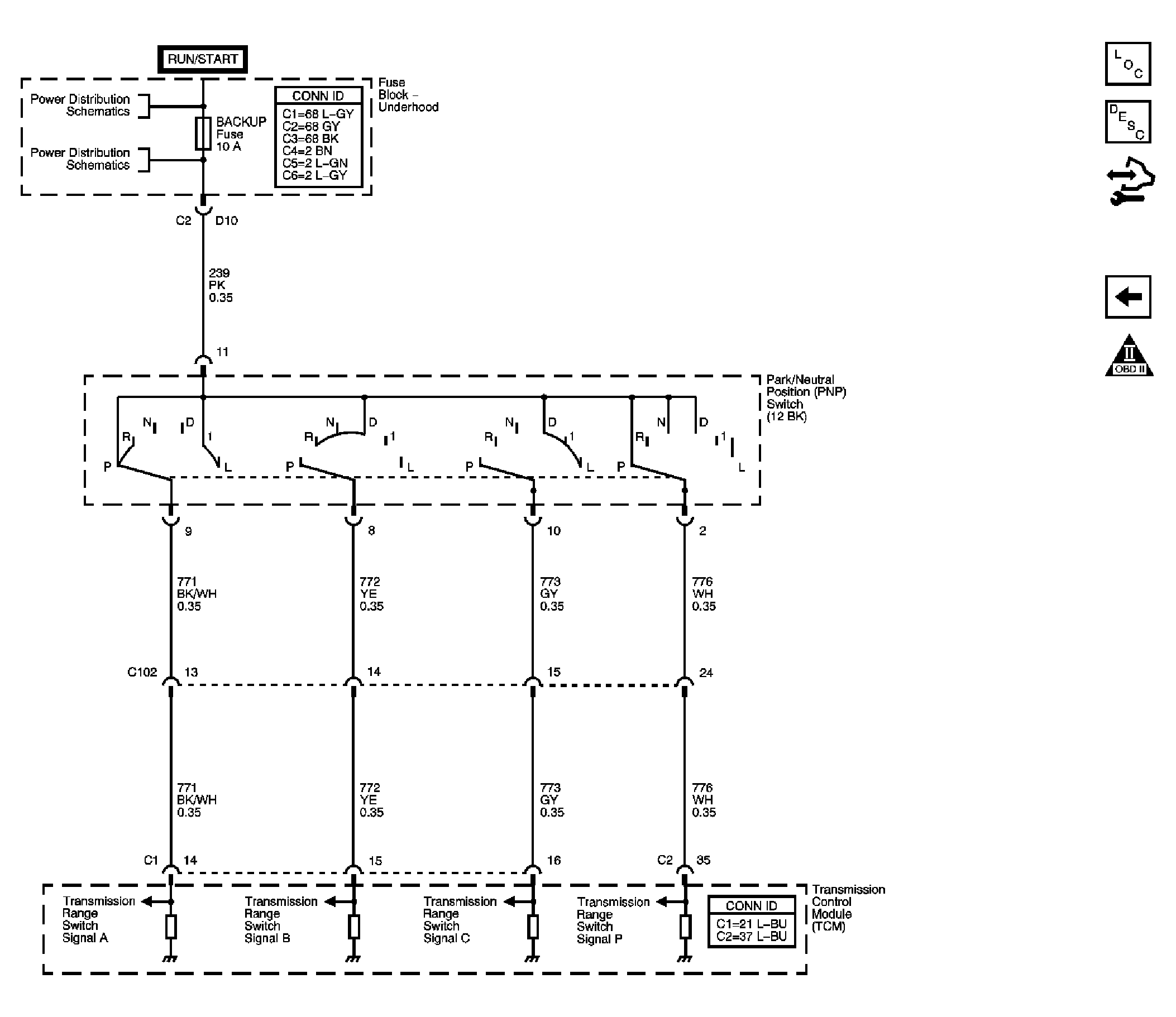

Fig 3: PNP Switch

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP Switch (LAT)

Courtesy of GENERAL MOTORS CORP.
