Transmission Control Module Replacement (2.4L - LAT))

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

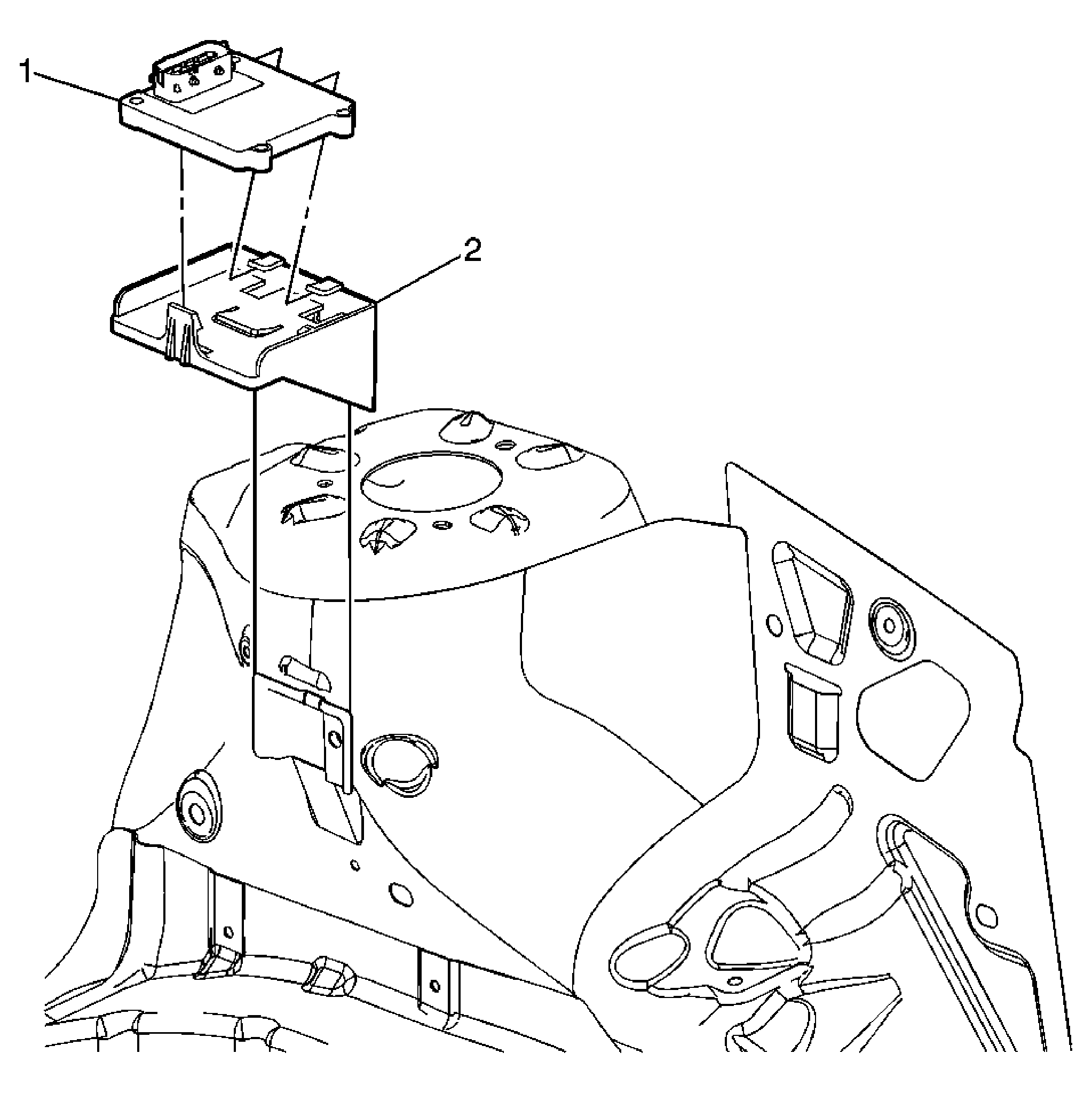

Fig 1: View Of Transmission Control Module (2.4L - LAT)
GM1815847Courtesy of GENERAL MOTORS CORP.
Transmission Control Module Replacement (2.4L - LAT))

Callout Component Name
1 TCM
IMPORTANT: Twisting or tilting of the transmission control module electrical connector while disconnecting may result in bent or misaligned electrical terminal pins.

Tip:
2 Transmission Control Module Bracket
