Tools Required

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

J 36850  TRANSJEL™

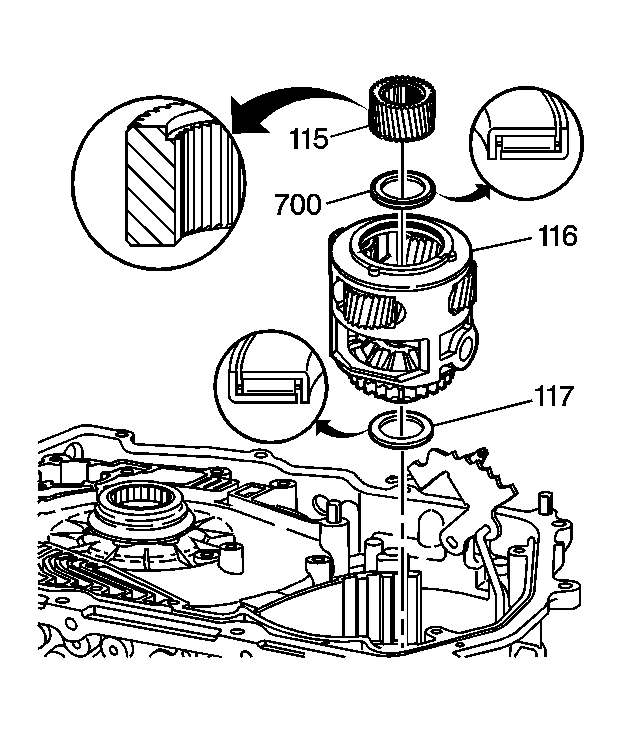

    Fig 1: Identifying Sun Gear Grooved Side Up
    GM20234Courtesy of GENERAL MOTORS CORP.
  1. Install the final drive carrier to case thrust bearing (117) onto the final drive carrier. Retain the bearing with J 36850  .
  2. Install the complete final drive carrier assembly (116) into the transmission case (51).
    3. IMPORTANT: Install the sun gear with the grooved side up (flat side down).
  3. Install the final drive sun gear (115) into the final drive carrier (116).
