Tools Required
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
J 36850 Assembly Lubricant
NOTE:
Use J 36850 or equivalent during assembly in order to retain checkballs or to lubricate components. Lubricants other than the recommended assembly lube changes the transmission fluid characteristics and causes undesirable shift conditions or filter clogging.

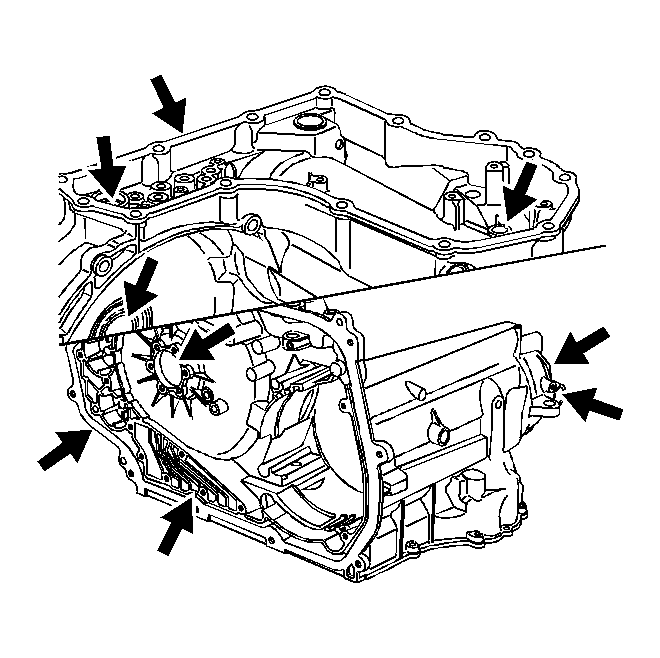

- Thoroughly clean the transmission case and all the case threads with solvent.
- Inspect the case exterior and the external bores for cracks, sharp edges, porosity and excessive bushing wear.
- Inspect the case interior for damage at the snap ring grooves, case lugs and band anchor pin.
- Inspect all the gasket surfaces for surface damage and in order to ensure surface flatness.
- Inspect the corresponding gasket for proper impressions in order to ensure surface flatness.
- Inspect the bolt holes and fasteners for thread damage. If necessary, repair or replace any bolt holes or fasteners.
- Air check the oil passages. For identification of the oil passages, refer to appropriate cooling and lub hydraulic circuits under Description and Operation .
IMPORTANT:
After cleaning the transmission case, allow the case to air dry. Do not use cloth or paper towels in order to dry the transmission case or any other transmission components. Lint from the towels can cause component failure.
