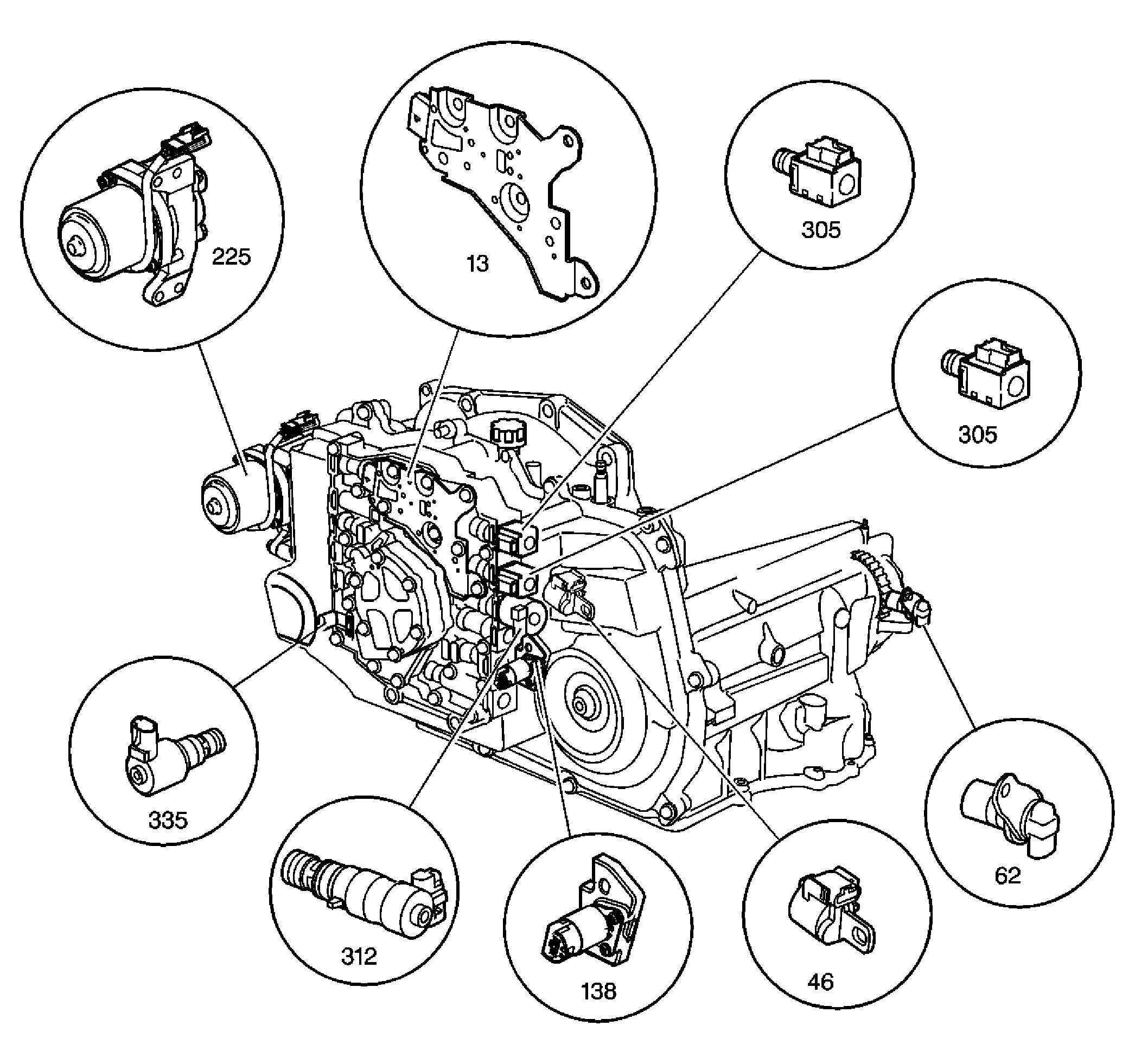

Automatic Transmission Electronic Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 13 | TFP Manual Valve Position Switch Assembly |
| 46 | Input Speed Sensor |
| 62 | Output Speed Sensor |
| 138 | 4-3 Solenoid - L4 Hybrid |
| 225 | Auxiliary Pump - L4 Hybrid |
| 305 | 1-2 and 2-3 Shift Solenoid Valves |
| 305 | 1-2 and 2-3 Shift Solenoid Valves |
| 312 | Pressure Control Solenoid |
| 335 | TCC Control PWM Solenoid |
